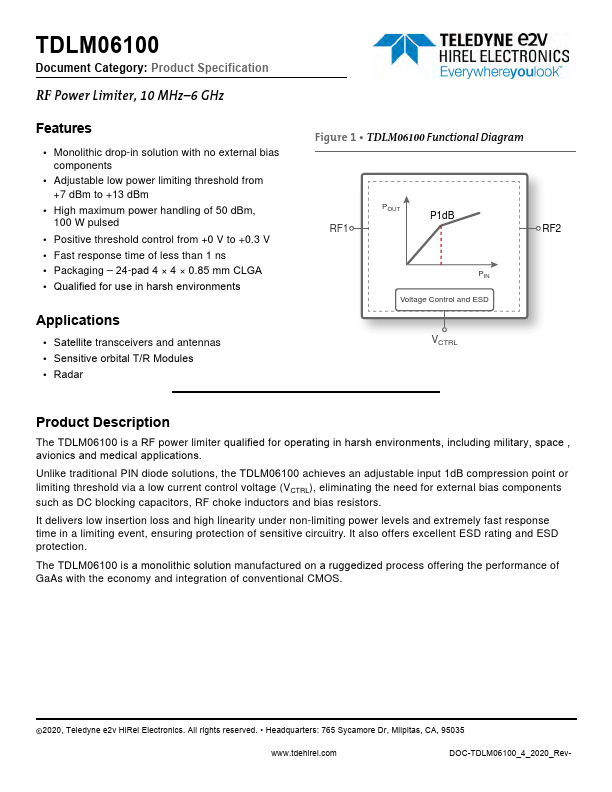

TDLM06100 Datasheet RF Power Limiter

Manufacturer: TELEDYNE

Overview: TDLM06100 Document Category: Product Specification RF Power Limiter, 10 MHz–6.

📥 Download Datasheet

Datasheet Details

Part number TDLM06100
Manufacturer TELEDYNE
File Size 1.34 MB
Description RF Power Limiter
Download TDLM06100 Download (PDF)

General Description

The TDLM06100 is a RF power limiter qualified for operating in harsh environments, including military, space , avionics and medical applications.

Unlike traditional PIN diode solutions, the TDLM06100 achieves an adjustable input 1dB compression point or limiting threshold via a low current control voltage (VCTRL), eliminating the need for external bias components such as DC blocking capacitors, RF choke inductors and bias resistors.

It delivers low insertion loss and high linearity under non-limiting power levels and extremely fast response time in a limiting event, ensuring protection of sensitive circuitry.

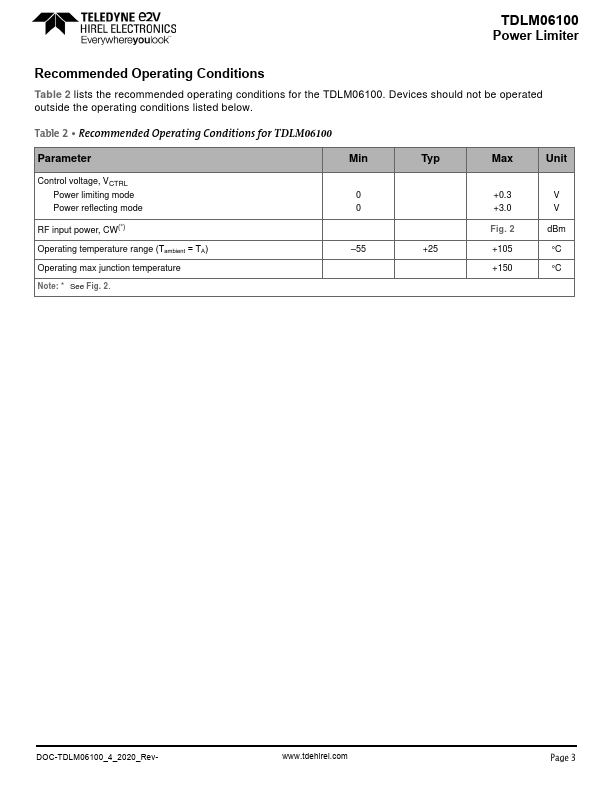

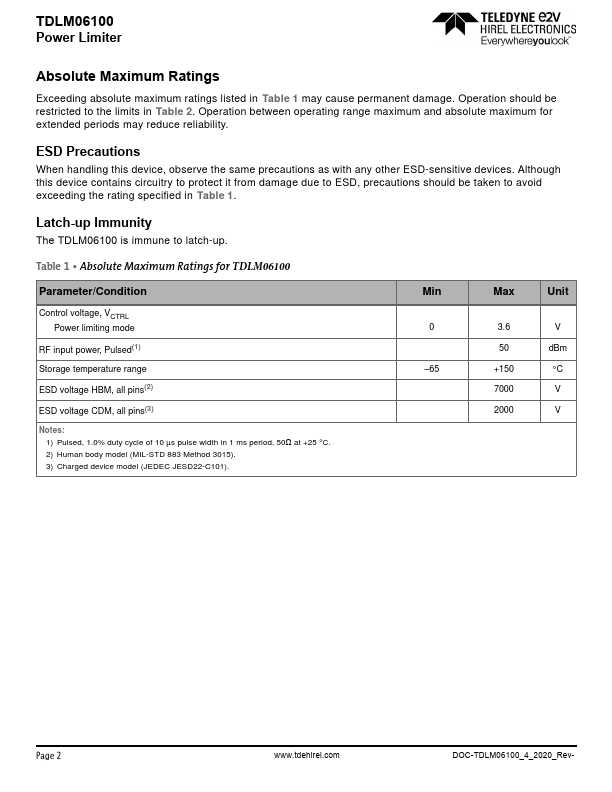

Key Features

  • Monolithic drop-in solution with no external bias components.
  • Adjustable low power limiting threshold from +7 dBm to +13 dBm.
  • High maximum power handling of 50 dBm, 100 W pulsed.
  • Positive threshold control from +0 V to +0.3 V.
  • Fast response time of less than 1 ns.
  • Packaging.
  • 24-pad 4 × 4 × 0.85 mm CLGA.
  • Qualified for use in harsh environments.
