1SS400 - SMD High Speed Switching Diode

Datasheet Summary

Description

DIM.

Features

- Fast switching device ( trr < 4.0 ns ) - Surface mount device type - Moisture sensitivity level 1 - Matte Tin(Sn) lead finish - Pb free and RoHS compliant - Green compound (Halogen free) with suffix "G" on packing code and prefix "G" on date code.

Taiwan Semiconductor

📥 Download Datasheet

Datasheet Details

Part number	1SS400
Manufacturer	Taiwan Semiconductor
File Size	139.88 KB
Description	SMD High Speed Switching Diode
Datasheet	1SS400 Datasheet

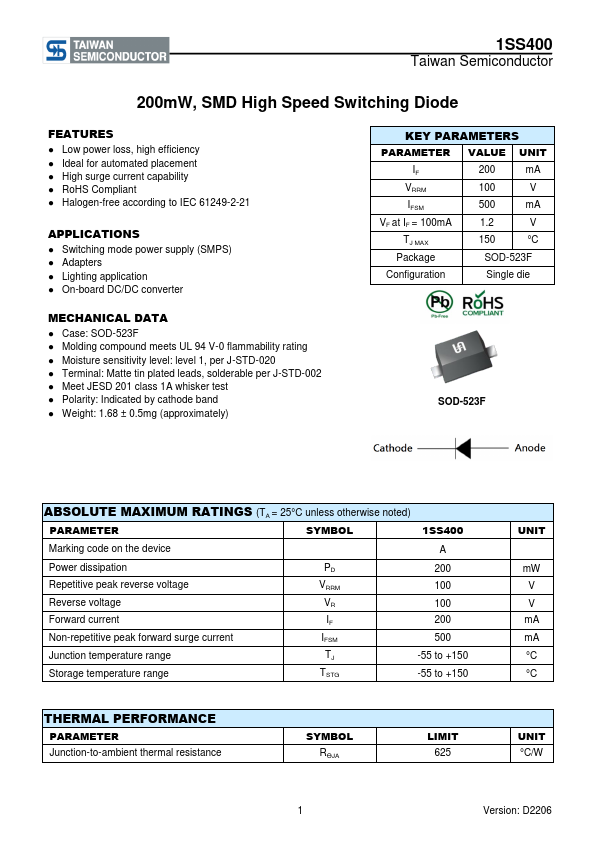

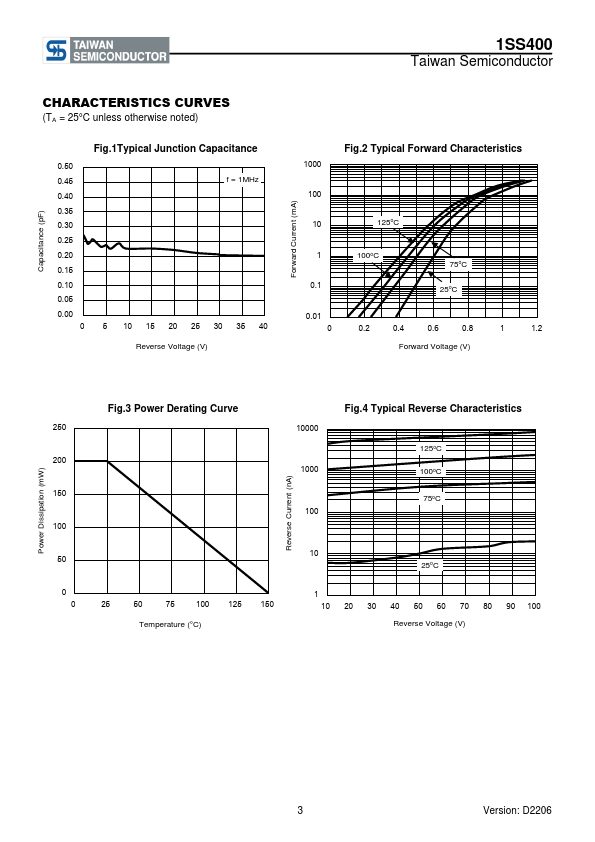

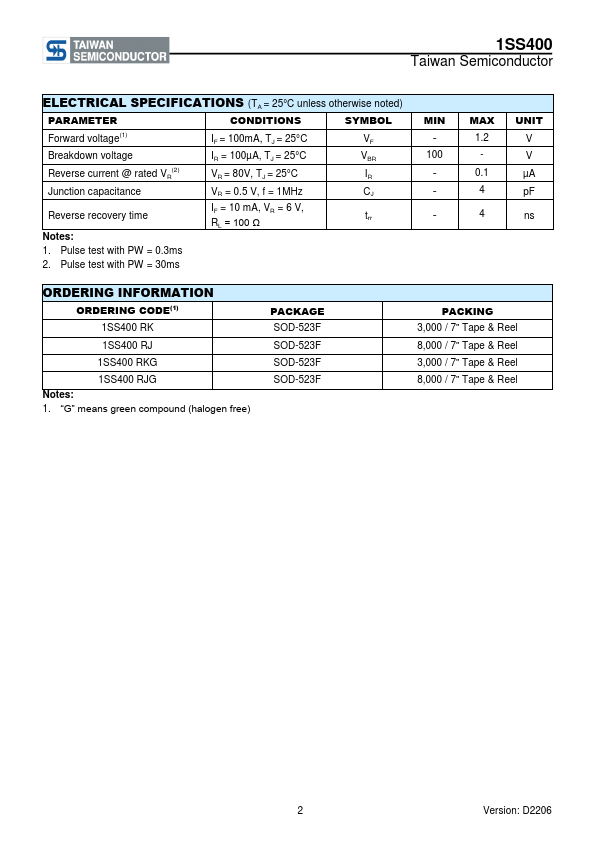

Additional preview pages of the 1SS400 datasheet.

📁 Similar Datasheet

1SS400 - SURFACE MOUNT FAST SWITCHING DIODE (LITE-ON)
1SS400 - High speed Switching Diode (GME)
1SS400 - SURFACE MOUNT FAST SWITCHING DIODE (WON-TOP)
1SS400 - Switching Diode (ROHM)
1SS400 - 200mW SURFACE MOUNT SWITCHING DIODES (TIPTEK)
1SS400 - Surface Mount Switching Diodes (Bruckewell)
1SS400 - High Speed Switching Diode (Eris)
1SS400 - 90Volts High Speed Switching Diodes (MCC)
1SS400 - High Speed Switching Diode (JCET)
1SS400 - SWITCHING DIODE (Unisonic Technologies)

Other Datasheets by Taiwan Semiconductor

1SS400CS - SMD High Speed Switching Diode
1SS133M - Hermetically Sealed Glass Switching Diodes
1SS355 - 200mW High Speed SMD Switching Diode

Full PDF Text Transcription

Click to expand full text

1SS400 Taiwan Semiconductor Small Signal Product 200mW, SMD High Speed Switching Diode FEATURES - Fast switching device ( trr < 4.0 ns ) - Surface mount device type - Moisture sensitivity level 1 - Matte Tin(Sn) lead finish - Pb free and RoHS compliant - Green compound (Halogen free) with suffix "G" on packing code and prefix "G" on date code MECHANICAL DATA - Case: Flat lead SOD-523F small outline plastic package - Terminal: Matte tin plated, lead free , solderable per MIL-STD-202, Method 208 guaranteed - High temperature soldering guaranteed: 260°C/10s - Polarity: Indicated by cathode band - Weight: 1.68 ± 0.

Published: Mar 30, 2016 |
