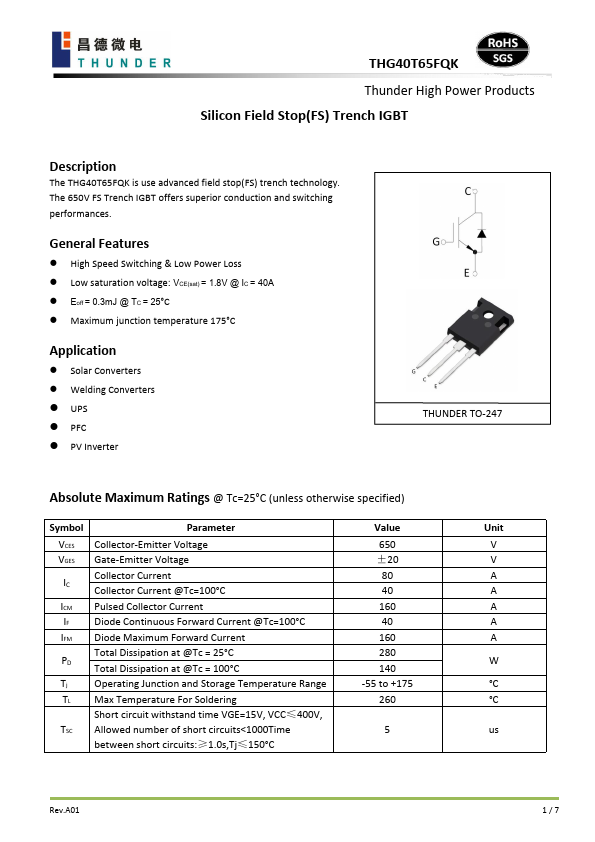

THG40T65FQK
THG40T65FQK is Silicon Field Stop Trench IGBT manufactured by Thunder.
THG40T65FQK Thunder High Power Products Silicon Field Stop(FS) Trench IGBT
Description
The THG40T65FQK is use advanced field stop(FS) trench technology. The 650V FS Trench IGBT offers superior conduction and switching performances.
General Features
- High Speed Switching & Low Power Loss
- Low saturation voltage: VCE(sat) = 1.8V @ IC = 40A
- Eoff = 0.3m J @ TC = 25°C
- Maximum junction temperature 175°C
Application
- Solar Converters
- Welding Converters
- UPS
- PFC
- PV Inverter
