XC6204 - 300mA/150mA High Speed LDO Regulators

Download the XC6204 datasheet PDF. This datasheet also covers the XC6205 variant, as both devices belong to the same 300ma/150ma high speed ldo regulators family and are provided as variant models within a single manufacturer datasheet.

General Description

The XC6204/XC6205 series are highly precise, low noise, positive voltage LDO regulators manufactured using CMOS processes.

Key Features

  • Maximum Output Current : 150mA 300mA(XC6204 E to H type) Dropout Voltage : 200mV @ 100mA 60mV @ 30mA Operating Voltage : 2V ~ 10V Output Voltage Range : 1.8V ~ 6.0V (XC6204) 0.9V ~ 1.75V (XC6205) Highly Accurate : ±2%, ±1% Low Power Consumption : 70μA (TYP. ) Standby Current : 0.1μA (MAX. ) High Ripple Rejection : 70dB@10kHz (XC6204) 60dB@10kHz (XC6205) Low ESR Capacitor Compatible : Ceramic capacitor Operating Ambient Temperature : -40℃~ 85℃ Packages : SOT-25, SOT-89-5, USP-6B.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (XC6205-TorexSemiconductor.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
XC6206 100mA Low Dropout CMOS Voltage Regulators JinYu
XC6206 Linear voltage regulator UMW
XC6211 300mA High Speed LDO Regulators Torex
XC6218 Low Power Supply LDO Regulators TOREX
XC6238 300mA High Speed LDO Regulator Torex

Other Datasheets by Torex Semiconductor

Part Number Description
XC6201 Positive Voltage Regulators
XC6202 High Voltage positive Voltage Regulators
XC6203 Large Current Positive Voltage Regulators
XC6205 300mA/150mA High Speed LDO Regulators
XC6206 Positive Voltage Regulators

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

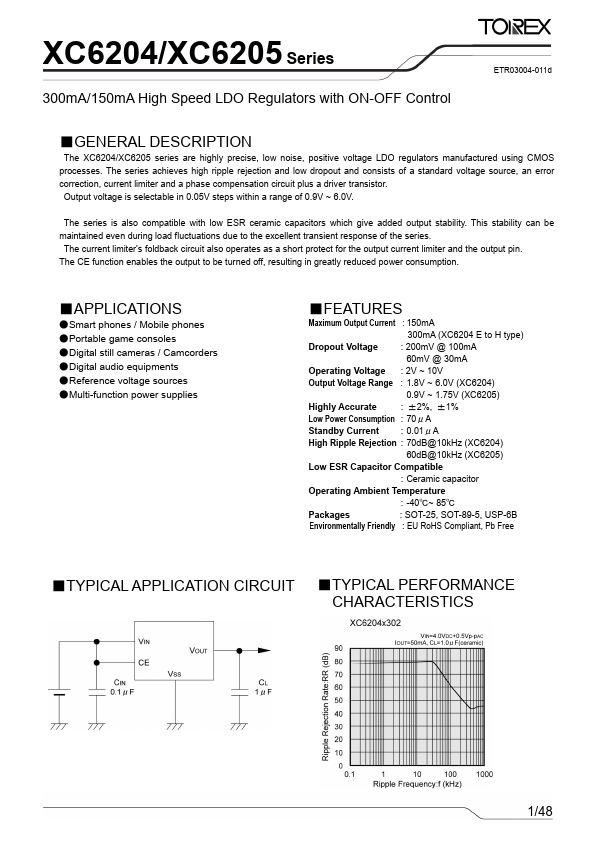

XC6204/XC6205 Series 300mA/150mA High Speed LDO Regulators with ON-OFF Control ETR03004-011c ■GENERAL DESCRIPTION The XC6204/XC6205 series are highly precise, low noise, positive voltage LDO regulators manufactured using CMOS processes. The series achieves high ripple rejection and low dropout and consists of a standard voltage source, an error correction, current limiter and a phase compensation circuit plus a driver transistor. Output voltage is selectable in 0.05V steps within a range of 0.9V ~ 6.0V. The series is also compatible with low ESR ceramic capacitors which give added output stability. This stability can be maintained even during load fluctuations due to the excellent transient response of the series.
