XC6201 - Positive Voltage Regulators

General Description

The XC6201 series are highly precise, low power consumption, positive voltage regulators manufactured using CMOS and laser trimming technologies.

The series provides large currents with a significantly small dropout voltage.

Key Features

  • Maximum Output Current : 250mA (TYP. ) Dropout Voltage : 0.16V @ 100mA : 0.40V @ 200mA Maximum Operating Voltage : 10V Output Voltage Range : 1.3V ~ 6.0V (0.1V increments) Fixed Voltage Accuracy : ±1% (VOUT(T)>2.0V) ±2% Low Power Consumption : 2.0μA (TYP. ) Operating Ambient Temperature : -40℃ ~ 85℃ Packages : SOT-25, SOT-89 Environmentally Friendly USP-6B : EU RoHS Compliant, Pb Free Tantalum or Ceramic Capacitor compatible.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
XC6206 100mA Low Dropout CMOS Voltage Regulators JinYu
XC6206 Linear voltage regulator UMW
XC6211 300mA High Speed LDO Regulators Torex
XC6218 Low Power Supply LDO Regulators TOREX
XC6238 300mA High Speed LDO Regulator Torex

Other Datasheets by Torex Semiconductor

Part Number Description
XC6202 High Voltage positive Voltage Regulators
XC6203 Large Current Positive Voltage Regulators
XC6204 300mA/150mA High Speed LDO Regulators
XC6205 300mA/150mA High Speed LDO Regulators
XC6206 Positive Voltage Regulators

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

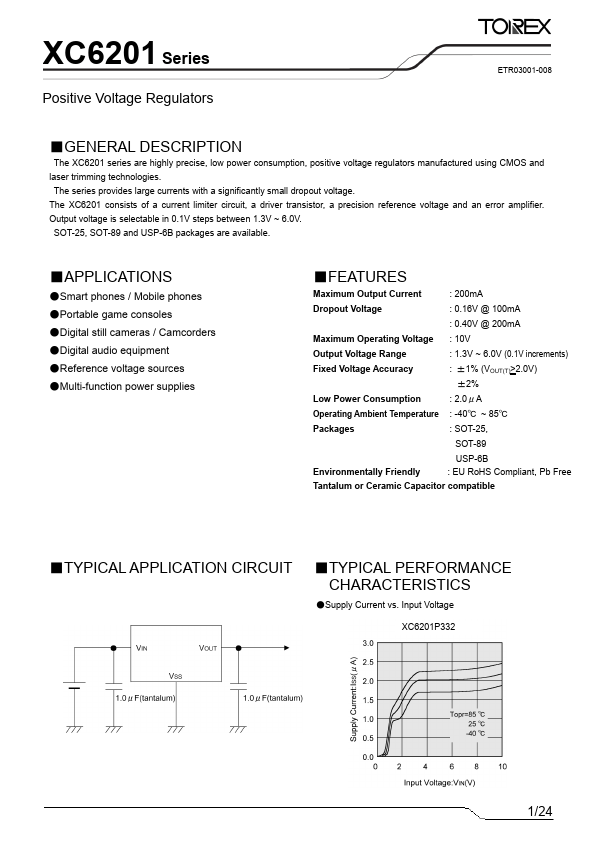

XC6201 Series Positive Voltage Regulators ETR03001-007d ■GENERAL DESCRIPTION The XC6201 series are highly precise, low power consumption, positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The XC6201 consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error amplifier. Output voltage is selectable in 0.1V steps between 1.3V ~ 6.0V. SOT-25, SOT-89 and USP-6B packages are available. ■APPLICATIONS ●Smart phones / Mobile phones ●Portable game consoles ●Digital still cameras / Camcorders ●Digital audio equipment ●Reference voltage sources ●Multi-function power supplies ■FEATURES Maximum Output Current : 250mA (TYP.
