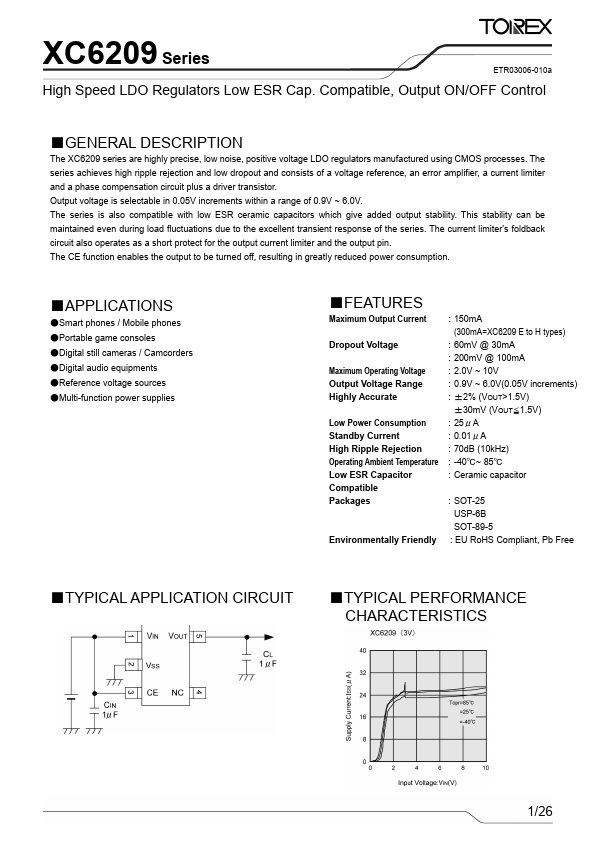

XC6209 Datasheet | Torex Semiconductor

DESCRIPTION The XC6209 series are highly precise, low noise, positive voltage LDO regulators manufactured using CMOS processes. The series achieves high ripple rejection and low dropout and consists of a voltage reference, an error amplifier, a current limiter and a phase pensation circuit plus a driver transistor. Output voltage is selectable in 0.05V increments within a range of 0.9V ~ 6.0V. The series is also patible with low ESR ceramic capacitors which give added output stability. This stability can be maintained even during load fluctuations due to the excellent transient response of the series. The current limiter's foldback circuit also operates as a short protect for the output current limiter and the output pin. The CE function enables the output to be turned off, resulting in greatly reduced power consumption. - APPLICATIONS - Smart phones / Mobile phones - Portable game consoles - Digital still cameras / Camcorders - Digital audio equipments - Reference voltage sources - Multi-function power supplies - FEATURES Maximum Output Current Dropout Voltage Maximum Operating Voltage Output Voltage Range Highly Accurate Low Power Consumption Standby Current High Ripple Rejection Operating Ambient Temperature Low ESR Capacitor patible Packages Environmentally Friendly : 150m A (300m A=XC6209 E to H types) : 60m V @ 30m A : 200m V @ 100m A : 2.0V ~ 10V : 0.9V ~ 6.0V(0.05V increments) : ±2% (VOUT>1.5V) ±30m V (VOUT≦1.5V) : 25μA : 0.01μA : 70d B (10k Hz) : -40℃~ 85℃ : Ceramic capacitor : SOT-25 USP-6B SOT-89-5 : EU Ro HS pliant, Pb Free - TYPICAL APPLICATION CIRCUIT - TYPICAL PERFORMANCE CHARACTERISTICS 1/26 XC6209 Series - PIN CONFIGURATION CE 6 VSS 5 NC 4 1 VIN 2 NC 3 VOUT USP-6B (BOTTOM VIEW) - The dissipation pad for the USP-6B package should be solder-plated in remended mount pattern and metal masking so as to enhance mounting strength and heat release. If the pad needs to be connected to other pins, it should be connected to the VSS pin. - PIN ASSIGNMENT SOT-25 1 2 3 4...
