XC6227 - 700mA High Speed LDO Regulator

Description

The XC6227 series is a highly accurate, low noise, high ripple rejection, low dropout, and low power consumption high speed voltage regulator.

Features

  • Maximum Output Current : 700mA Dropout Voltage Operating Voltage Range : 120mV @IOUT=300mA(VOUT=3.0V) : 1.7V ~ 6.0V Output Voltages Accuracy : 0.8V ~ 5.0V (0.05V increments) : ±1% (VOUT＞2.0V) ±0.02V (VOUT≦2.0V) Low Power Consumption : 100μA Chip Enable(CE) : Active High Standby Current below 0.1μA High Ripple Rejection : 65dB @ 1kHz Operating Ambient Temperature : -40℃ ~ 85℃ Low ESR Capacitor : Ceramic capacitor Packages : USP-6C, SOT-25, SOT-89-5 Environmentally Friendly : EU.

📥 Download Datasheet

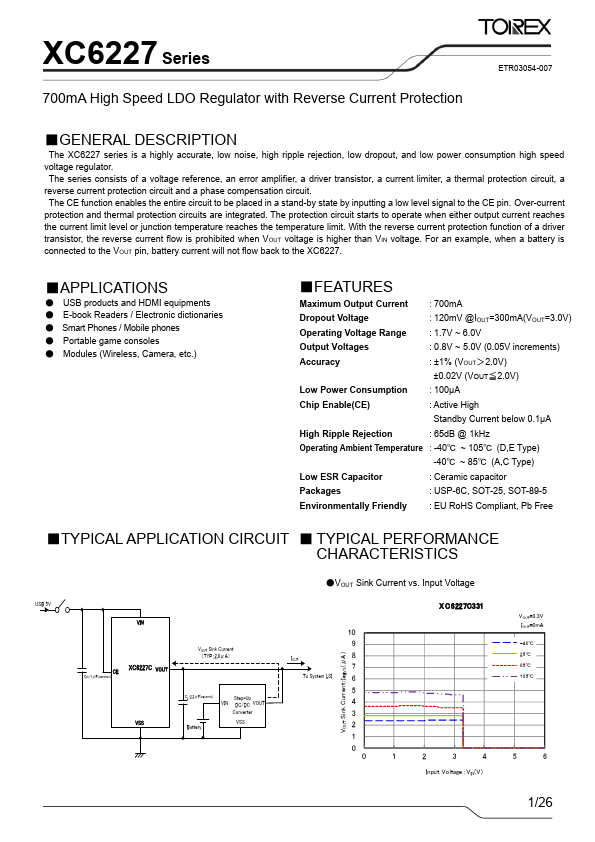

Datasheet preview – XC6227

Datasheet Details

Part number XC6227
Manufacturer Torex Semiconductor
File Size 939.65 KB
Description 700mA High Speed LDO Regulator
Datasheet download datasheet XC6227 Datasheet
Additional preview pages of the XC6227 datasheet.

📁 Similar Datasheet

  • XC6206 - 100mA Low Dropout CMOS Voltage Regulators (JinYu)
  • XC6206 - Linear voltage regulator (UMW)
  • XC6211 - 300mA High Speed LDO Regulators (Torex)
  • XC6218 - Low Power Supply LDO Regulators (TOREX)
  • XC6238 - 300mA High Speed LDO Regulator (Torex)
  • XC6240 - Rechargeable Batteries Charging (Torex)
  • XC6241 - High Speed Voltage Regulators (Torex)
  • XC6242 - Charging IC (Torex)
  • XC62AP5002PR - Positive Voltage Regulator (ETC)
  • XC62K - Negative Voltage Regulators (Torex)
Other Datasheets by Torex Semiconductor
  • XC6220 - 1A LDO Voltage Regulator
  • XC6221 - Low ESR Caps Compatible High Speed LDO Voltage Regulators
  • XC6222 - 700mA High Speed LDO Regulator
  • XC6223 - 300mA High Speed LDO Voltage Regulator
  • XC6224 - 150mA High Speed LDO Voltage Regulator
  • XC6225 - 30mA High Speed LDO Regulator
  • XC6228 - 300mA High Speed LDO Regulator
  • XC6229 - 300mA Ultra Small High Speed LDO Regulator

Full PDF Text Transcription

Click to expand full text
XC6227 Series 700mA High Speed LDO Regulator with Reverse Current Protection ETR03054-006 ■GENERAL DESCRIPTION The XC6227 series is a highly accurate, low noise, high ripple rejection, low dropout, and low power consumption high speed voltage regulator. The series consists of a voltage reference, an error amplifier, a driver transistor, a current limiter, a thermal protection circuit, a reverse current protection circuit and a phase compensation circuit. The CE function enables the entire circuit to be placed in a stand-by state by inputting a low level signal to the CE pin. Over-current protection and thermal protection circuits are integrated.
