XC6229 - 300mA Ultra Small High Speed LDO Regulator

Description

The XC6229 series is a high speed LDO regulator that

Features

  • Maximum Output Current Input Voltage Range Output Voltages Dropout Voltage Low Power Consumption Stand-by Current High Ripple Rejection Protection Circuits Low ESR Capacitors CE Function Operating Ambient Temperature Small Package Environmentally Friendly : 300mA : 1.6 ~ 5.5V : 2.0 ~ 4.0V (Accuracy ±1%) 1.2 ~ 1.95V (Accuracy ±20mV) 0.05V increments : 80mV＠IOUT=150mA (VOUT=3.0V) : 100μA : 0.1μA : 80dB＠f=1kHz : Current Limit (400mA) Thermal shutdown Protection Inrush Current Protection : CIN =1.

📥 Download Datasheet

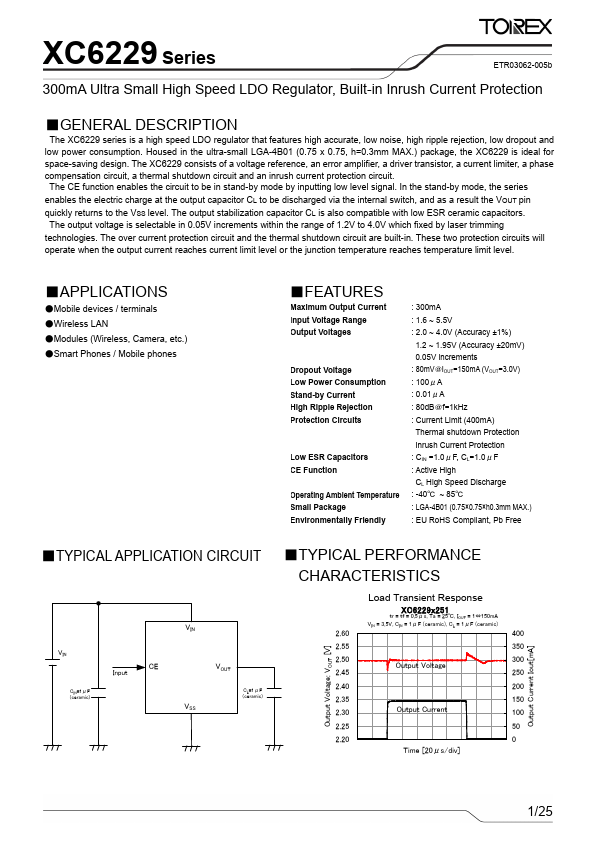

Datasheet preview – XC6229

Datasheet Details

Part number XC6229
Manufacturer Torex Semiconductor
File Size 1.14 MB
Description 300mA Ultra Small High Speed LDO Regulator
Datasheet download datasheet XC6229 Datasheet
Additional preview pages of the XC6229 datasheet.

📁 Similar Datasheet

  • XC6206 - 100mA Low Dropout CMOS Voltage Regulators (JinYu)
  • XC6206 - Linear voltage regulator (UMW)
  • XC6211 - 300mA High Speed LDO Regulators (Torex)
  • XC6218 - Low Power Supply LDO Regulators (TOREX)
  • XC6238 - 300mA High Speed LDO Regulator (Torex)
  • XC6240 - Rechargeable Batteries Charging (Torex)
  • XC6241 - High Speed Voltage Regulators (Torex)
  • XC6242 - Charging IC (Torex)
  • XC62AP5002PR - Positive Voltage Regulator (ETC)
  • XC62K - Negative Voltage Regulators (Torex)
Other Datasheets by Torex Semiconductor
  • XC6220 - 1A LDO Voltage Regulator
  • XC6221 - Low ESR Caps Compatible High Speed LDO Voltage Regulators
  • XC6222 - 700mA High Speed LDO Regulator
  • XC6223 - 300mA High Speed LDO Voltage Regulator
  • XC6224 - 150mA High Speed LDO Voltage Regulator
  • XC6225 - 30mA High Speed LDO Regulator
  • XC6227 - 700mA High Speed LDO Regulator
  • XC6228 - 300mA High Speed LDO Regulator

Full PDF Text Transcription

Click to expand full text
XC6229 Series ETR03062-005a 300mA Ultra Small High Speed LDO Regulator, Built-in Inrush Current Protection ■GENERAL DESCRIPTION The XC6229 series is a high speed LDO regulator that features high accurate, low noise, high ripple rejection, low dropout and low power consumption. Housed in the ultra-small LGA-4B01 (0.75 x 0.75, h=0.3mm MAX.) package, the XC6229 is ideal for space-saving design. The XC6229 consists of a voltage reference, an error amplifier, a driver transistor, a current limiter, a phase compensation circuit, a thermal shutdown circuit and an inrush current protection circuit. The CE function enables the circuit to be in stand-by mode by inputting low level signal.
