XC6403 - High Speed LDO Regulator

General Description

The XC6403/XC6404 series are highly precise, low noise, high current, positive voltage low dropout regulators with built-in voltage detector.

They are fabricated using Torex’s CMOS process.

Key Features

  • aximum Output Current Dropout Voltage Operating Voltage Range VR Output Voltage VD Detect Voltage VR. VD Temp. Coefficient Low Power Consumption High Ripple Rejection Highly Accurate Operating Temperature Low ESR Capacitor Compatible Ultra Small Packages Environmentally Friendly : More than 300mA (380mA limit) (1.8≦VROUT≦5.3V) [XC6403] More than 500mA (600mA limit) (2.5V≦VROUT≦4.9V) [XC6404] : 200mV @ 100mA 400mV @ 200mA : 2.0V ~ 6.0V : 0.9V ~ 5.6V [XC6403] 0.9V ~ 5.1V[XC6404] : 0.9V ~ 5.5V More.

📥 Download Datasheet

Full PDF Text Transcription for XC6403 (Reference)

Note: Below is a high-fidelity text extraction (approx. 800 characters) for XC6403. For precise diagrams, and layout, please refer to the original PDF.

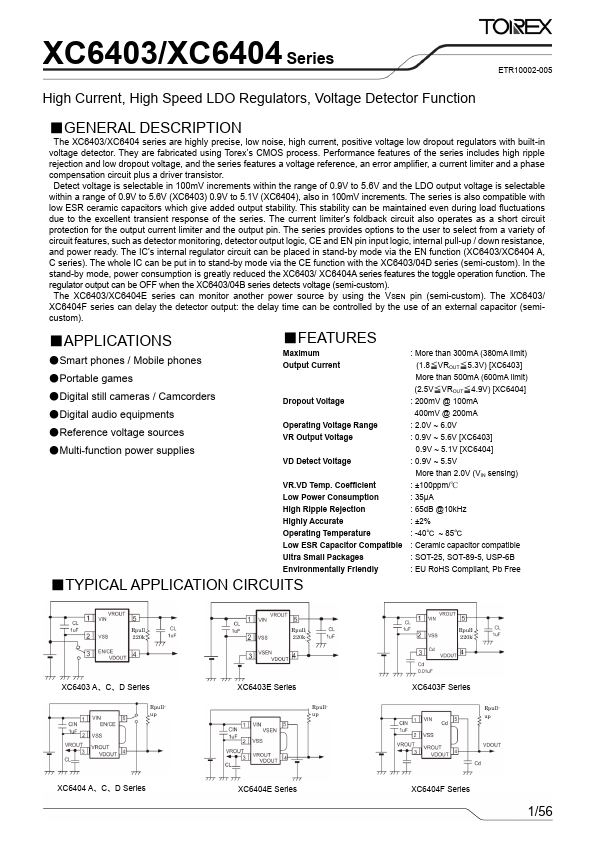

XC6403/XC6404 Series High Current, High Speed LDO Regulators, Voltage Detector Function ETR1002_004 ■GENERAL DESCRIPTION The XC6403/XC6404 series are highly precise, low ...

View more extracted text
■GENERAL DESCRIPTION The XC6403/XC6404 series are highly precise, low noise, high current, positive voltage low dropout regulators with built-in voltage detector. They are fabricated using Torex’s CMOS process. Performance features of the series includes high ripple rejection and low dropout voltage, and the series features a voltage reference, an error amplifier, a current limiter and a phase compensation circuit plus a driver transistor. Detect voltage is selectable in 100mV increments within the range of 0.9V to 5.6V and the LDO output voltage is selectable within a range of 0.9V to 5.6V (XC6403) 0.9V to 5.1V (XC6404),
