XC6405 - High Speed LDO Regulator

Datasheet Summary

Description

The XC6405 series are precise, low noise, high speed, high current, positive voltage low dropout regulators with built-in voltage detector.

They are fabricated using Torex’s CMOS process.

Features

  • of the series includes high ripple rejection and low dropout voltage, and the series features a voltage reference, an error amplifier, a current limiter and a phase compensation circuit plus a driver transistor. Detect voltage is selectable in 100mV increments within the range of 0.9V to 5.5V and the LDO output voltage is selectable within a range of 0.9V to 5.1V, also in 100mV increments. The series is also compatible with low ESR ceramic capacitors which give added output stability. This stabi.

📥 Download Datasheet

Datasheet preview – XC6405

Datasheet Details

Part number XC6405
Manufacturer Torex Semiconductor
File Size 1.30 MB
Description High Speed LDO Regulator
Datasheet download datasheet XC6405 Datasheet
Additional preview pages of the XC6405 datasheet.

📁 Similar Datasheet

  • XC610 - high performance and highly integrated SoC (XinChip)
  • XC6119 - Voltage Detector (Torex)
  • XC6126 - Single Voltage Detector (Torex)
  • XC6127 - Ultra Small Voltage Detector (Torex)
  • XC6129 - Voltage Detector (Torex)
  • XC6132 - Delay capacitor adjustable voltage detector (Torex)
  • XC6133 - Delay capacitor adjustable voltage detector (Torex)
  • XC6134 - Delay capacitor adjustable voltage detector (Torex)
  • XC6138 - Multi-function voltage detectors (Torex)
  • XC6140 - Voltage monitoring (Torex)
Other Datasheets by Torex Semiconductor
  • XC6401 - CMOS LDO voltage regulator
  • XC6402 - High Speed LDO Regulators
  • XC6403 - High Speed LDO Regulator
  • XC6404 - High Speed LDO Regulator
  • XC6406 - High Current Dual Positive Regulator
  • XC6408 - 28V Operation Voltage Regulator
  • XC6411 - Low Power Consumption Dual Voltage Regulator
  • XC6412 - Low Power Consumption Dual Voltage Regulator

Full PDF Text Transcription

Click to expand full text

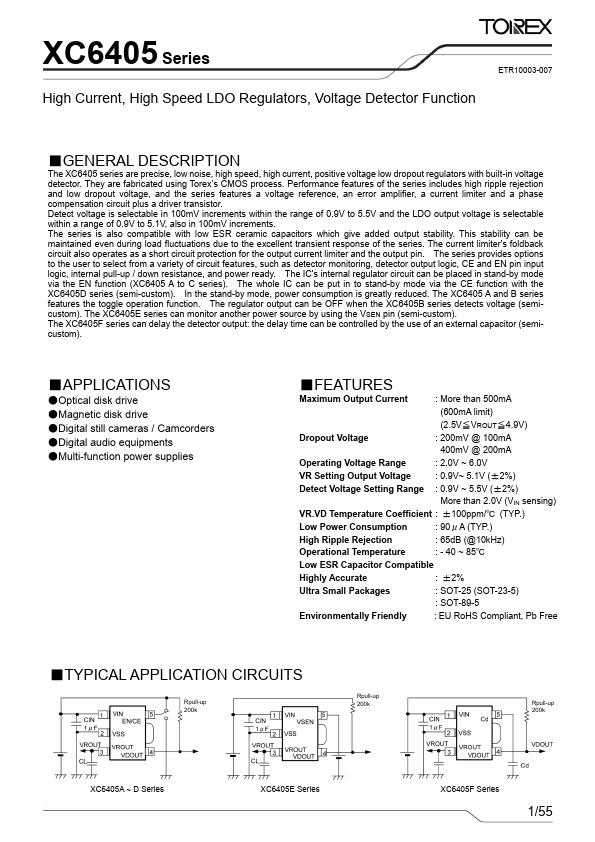

XC6405 Series High Current, High Speed LDO Regulators, Voltage Detector Function ETR1003_006 ˙GENERAL DESCRIPTION The XC6405 series are precise, low noise, high speed, high current, positive voltage low dropout regulators with built-in voltage detector. They are fabricated using Torex’s CMOS process. Performance features of the series includes high ripple rejection and low dropout voltage, and the series features a voltage reference, an error amplifier, a current limiter and a phase compensation circuit plus a driver transistor. Detect voltage is selectable in 100mV increments within the range of 0.9V to 5.5V and the LDO output voltage is selectable within a range of 0.9V to 5.1V, also in 100mV increments.
