XC9505 - Step-up / Inverting DC/DC Controller

General Description

XC9505 series are PWM controlled, PWM/PFM switching 2 channel (step-down and inverting) DC/DC controller ICs.

With 0.9V of internal standard voltage supply, and using externally connected components, the output 1 voltage (step-down DC/DC controller) can be set freely within a range of 0.9V to 6.0V.

Key Features

  • ch. DC/DC Controller (Step-Down / Inverting) Output Voltage Range : 0.9V ~ 6.0V (set by FB1 pin) Output Current : More than 1000mA (VIN=5.0V, VOUT=3.3V) Maximum Duty Cycle : 100% Soft-Start Internally Set-Up Output Voltage Range : -30V ~ 0V (set by FB2 pin) Output Current : More than -100mA (VIN=5.0V, VOUT= - 3.3V) Maximum Duty Cycle : 80% Operating Voltage Range : 2.0V ~ 10.0V Oscillation Freq.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
XC9500XL High-Performance CPLD Xilinx
XC95108 XC95108 In-System Programmable CPLD Xilinx
XC95144 XC95144 In-System Programmable CPLD Xilinx
XC95144XL High Performance CPLD Xilinx
XC95144XV High-Performance CPLD Xilinx

Other Datasheets by Torex Semiconductor

Part Number Description
XC9501 2ch. Step-up DC/DC Controller
XC9502 2ch. Step-up / down DC/DC Controller ICs
XC9503 2ch Step-down DC/DC Controller
XC9504 Step-up / Inverting DC/DC Controller
XC9508 Synchronous Step-Down DC/DC Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

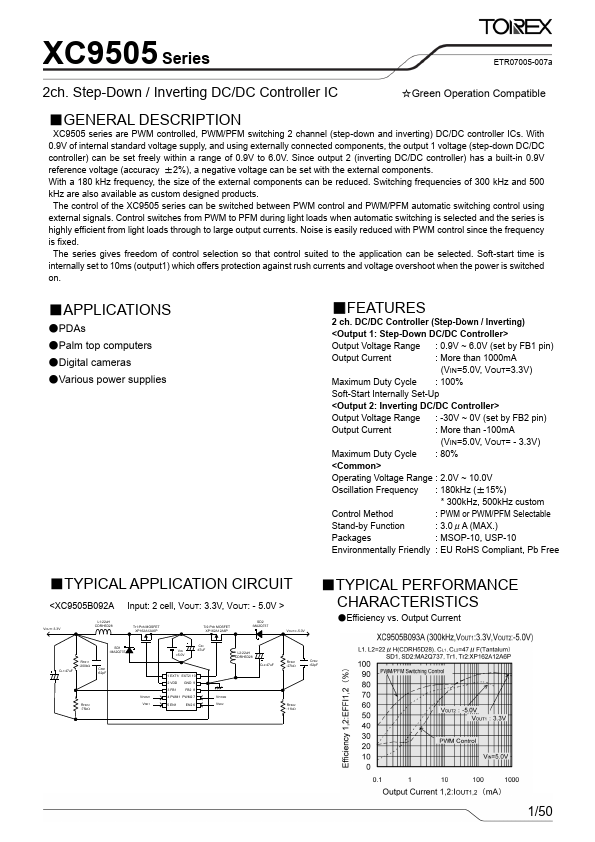

XC9505 Series ETR07005-007 2ch. Step-Down / Inverting DC/DC Controller IC ☆Green Operation Compatible ■GENERAL DESCRIPTION XC9505 series are PWM controlled, PWM/PFM switching 2 channel (step-down and inverting) DC/DC controller ICs. With 0.9V of internal standard voltage supply, and using externally connected components, the output 1 voltage (step-down DC/DC controller) can be set freely within a range of 0.9V to 6.0V. Since output 2 (inverting DC/DC controller) has a built-in 0.9V reference voltage (accuracy ±2%), a negative voltage can be set with the external components. With a 180 kHz frequency, the size of the external components can be reduced. Switching frequencies of 300 kHz and 500 kHz are also available as custom designed products.
