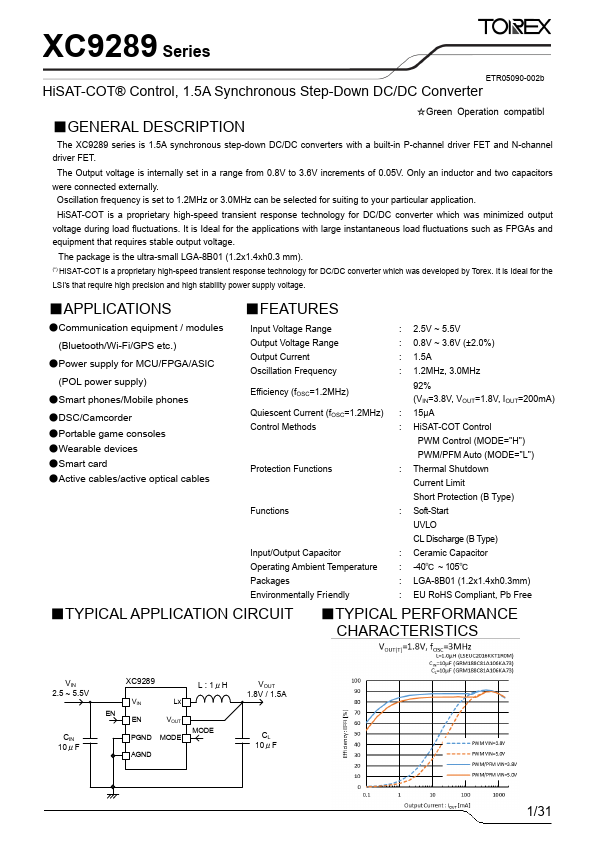

Datasheet Summary
XC9289 Series
ETR05090-002b
HiSAT-COT® Control, 1.5A Synchronous Step-Down DC/DC Converter
- GENERAL DESCRIPTION
☆Green Operation patibl
The XC9289 series is 1.5A synchronous step-down DC/DC converters with a built-in P-channel driver FET and N-channel driver FET. The Output voltage is internally set in a range from 0.8V to 3.6V increments of 0.05V. Only an inductor and two capacitors were connected externally. Oscillation frequency is set to 1.2MHz or 3.0MHz can be selected for suiting to your particular application.
HiSAT-COT is a proprietary high-speed transient response technology for DC/DC converter which was minimized output voltage during load fluctuations. It is Ideal for the...
