AO4807
AO4807 is -30V P-ChanneI MOSFET manufactured by UMW.

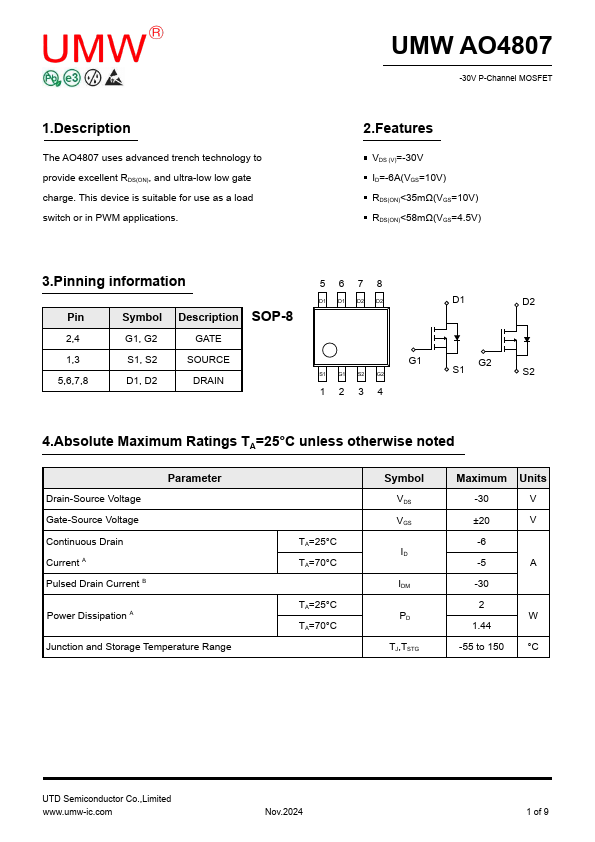

Description
The AO4807 uses advanced trench technology to provide excellent RDS(ON), and ultra-low low gate charge. This device is suitable for use as a load switch or in PWM applications.
UMW AO4807
-30V P-Channe I MOSFET
2.Features
VDS (V)=-30V ID=-6A(VGS=10V) RDS(ON)<35mΩ(VGS=10V) RDS(ON)<58mΩ(VGS=4.5V)
3.Pinning information
Pin
Symbol Description
SOP-8
D1 D1 D2 D2
D1
D2
2,4
G1, G2
GATE
1,3 5,6,7,8
S1, S2 D1, D2
SOURCE DRAIN
G1
G2
S1 G1 S2 G2
S1
S2
4.Absolute Maximum Ratings TA=25°C unless otherwise noted
Drain-Source Voltage Gate-Source Voltage Continuous Drain Current A Pulsed Drain Current B
Parameter
Power Dissipation A
Junction and Storage Temperature Range
TA=25°C TA=70°C
TA=25°C TA=70°C
Symbol VDS VGS ID IDM PD
TJ,TSTG
Maximum...
