ESD3Z5V0

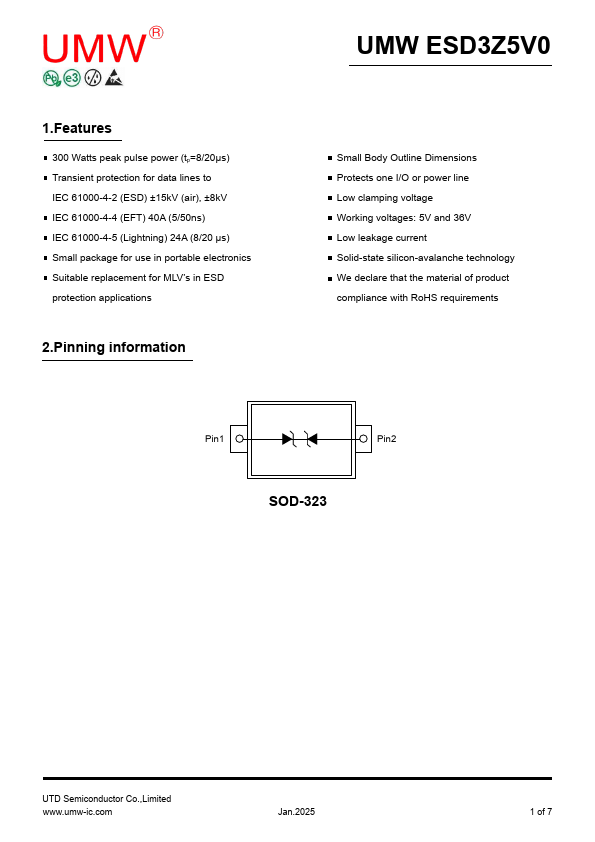

Features
300 Watts peak pulse power (tp=8/20μs) Transient protection for data lines to IEC 61000-4-2 (ESD) ±15k V (air), ±8k V IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 24A (8/20 μs) Small package for use in portable electronics Suitable replacement for MLV’s in ESD protection applications
2.Pinning information
UMW ESD3Z5V0
Small Body Outline Dimensions Protects one I/O or power line Low clamping voltage Working voltages: 5V and 36V Low leakage current Solid-state silicon-avalanche technology We declare that the material of product pliance with Ro HS requirements
Pin1
Pin2
SOD-323
UTD Semiconductor Co.,Limited .umw-ic.
Jan.2025
1 of 7
.umw-ic.
UMW ESD3Z5V0

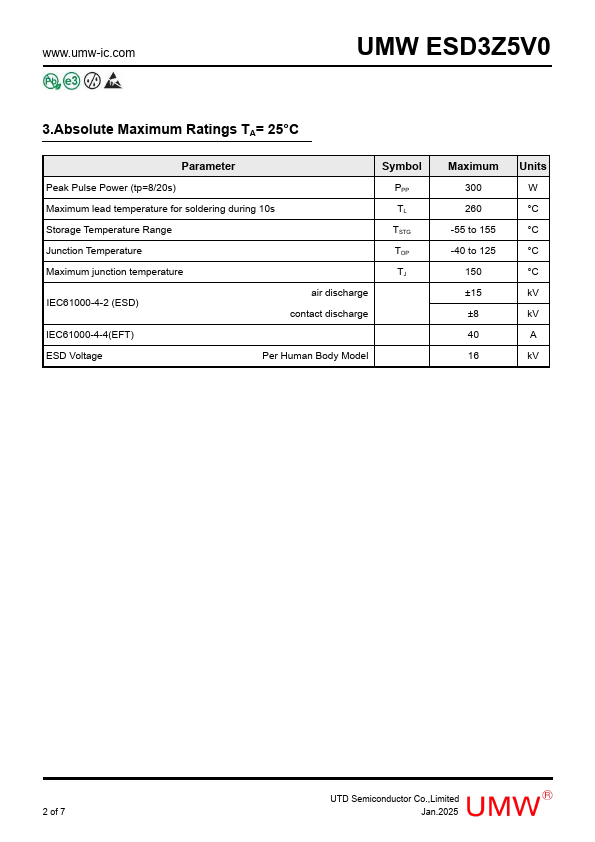

3.Absolute Maximum Ratings TA= 25°C
Parameter
Symbol
Peak Pulse Power (tp=8/20s)
Maximum lead temperature for soldering during 10s
Storage Temperature Range
TSTG
Junction Temperature
Maximum junction temperature
IEC61000-4-2 (ESD) air discharge contact discharge
IEC61000-4-4(EFT)...
