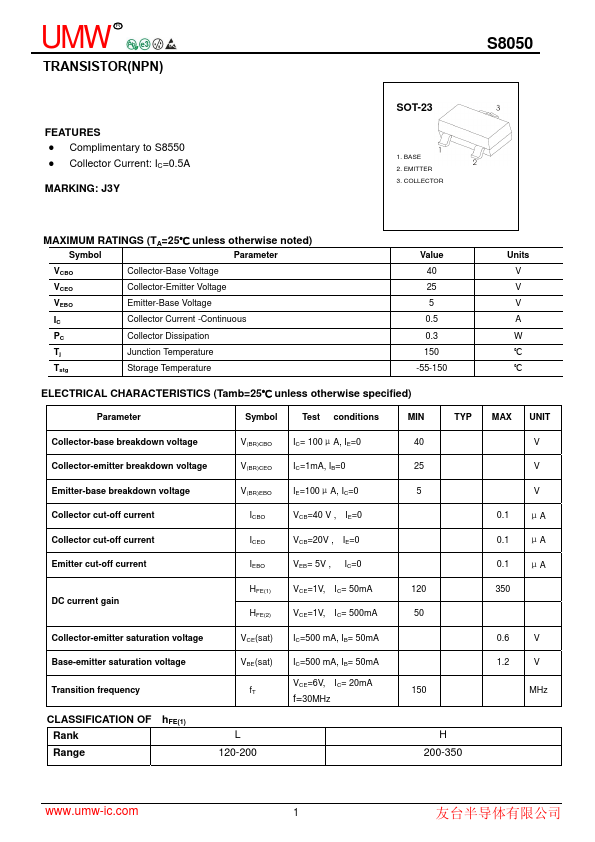

S8050
S8050 is NPN TRANSISTOR manufactured by UMW.
UMW R
TRANSISTOR(NPN)
Features z plimentary to S8550 z Collector Current: IC=0.5A MARKING: J3Y

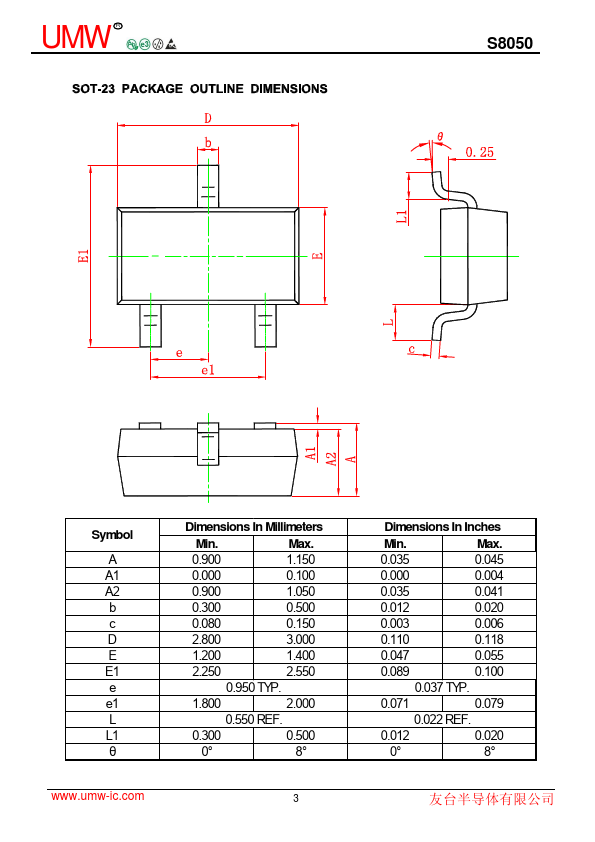

SOT-23
1. BASE 2. EMITTER 3. COLLECTOR
MAXIMUM RATINGS (TA=25℃ unless otherwise noted)
Symbol
Parameter
VCBO
Collector-Base Voltage
VCEO
Collector-Emitter Voltage
VEBO
Emitter-Base Voltage
Collector Current -Continuous
Collector Dissipation
Tj
Junction Temperature
Tstg
Storage Temperature
Value 40 25 5 0.5 0.3 150
-55-150
ELECTRICAL CHARACTERISTICS (Tamb=25℃ unless otherwise specified)
Parameter
Symbol
Test conditions
Collector-base breakdown voltage
V(BR)CBO
IC= 100μA, IE=0
Collector-emitter breakdown...
