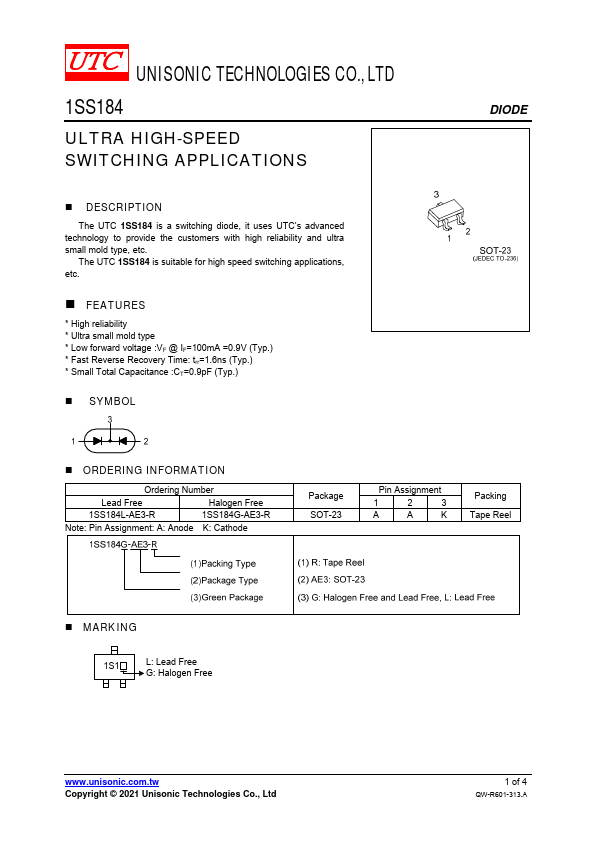

Unisonic Technologies 1SS184
1SS184 is a switching diode, it uses UTC’s advanced technology to provide the customers with high reliability and ultra small mold type, etc. The UTC 1SS184 is suitable for high speed switching applications, etc.| Part No. | 1SS184 |
|---|---|
| Datasheet | 1SS184 Download |
| Manufacturer |  Unisonic Technologies |
| Description | ULTRA HIGH-SPEED SWITCHING DIODE |
| Buy | Stock & Price |
APPLICATIONS
●DESCRIPTION
The UTC●
FEATURES
* High reliability * Ultra small mold type * Low forward voltage :VF @ IF=100mA =0.9V (Typ.) * Fast Reverse Recovery Time: trr=1.6ns (Typ.) * Small Total Capacitance :CT=0.9pF (Typ.)● SYMBOL DIODE
● ORDERING INFORMATION Ordering Number Lead Free Halogen Free 1SS184L-AE3-R 1SS184G-AE3-R Note: Pin Assignment: A: Anode K: Cathode Package SOT-23 Pin Assignment 1 2 3 A A K Packing Tape Reel
● MARKING 1S1 L: Lead Free G: Halogen Free Copyright © 2021 Unisonic Technologies Co., Ltd 1 of 4 QW-R601-313.A 1SS184 DIODE
●

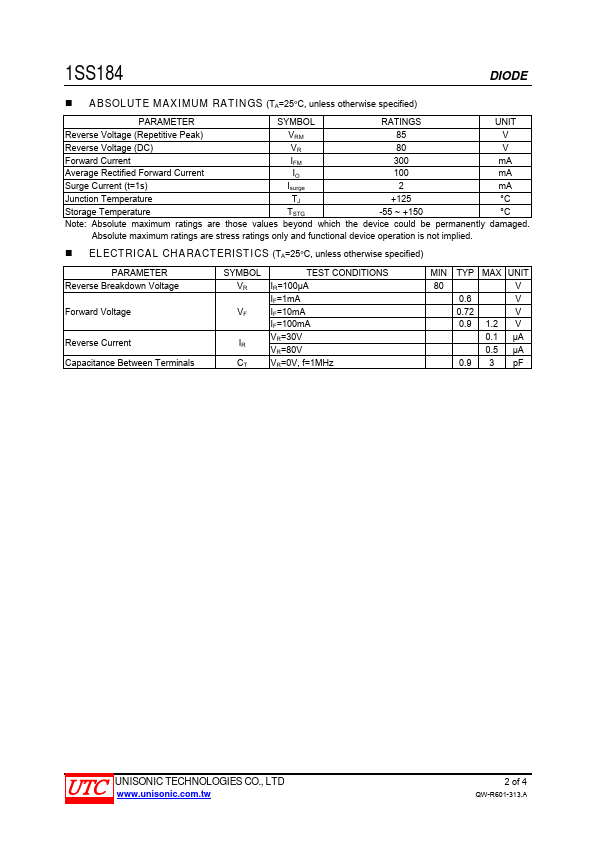

ABSOLUTE MAXIMUM RATINGS
(TA=25°C, unless otherwise specified) PARAMETER SYMBOL RATINGS UNIT Reverse Voltage (Repetitive Peak) VRM 85 V Reverse Voltage (DC) VR 80 V Forward Current IFM Average Rectified Forward Current IO 300 mA 100 mA Surge Current (t=1s) Junction Temperature Isurge 2 mA TJ +125 °C Storage Temperature TSTG -55 ~ +150 °C Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged.
