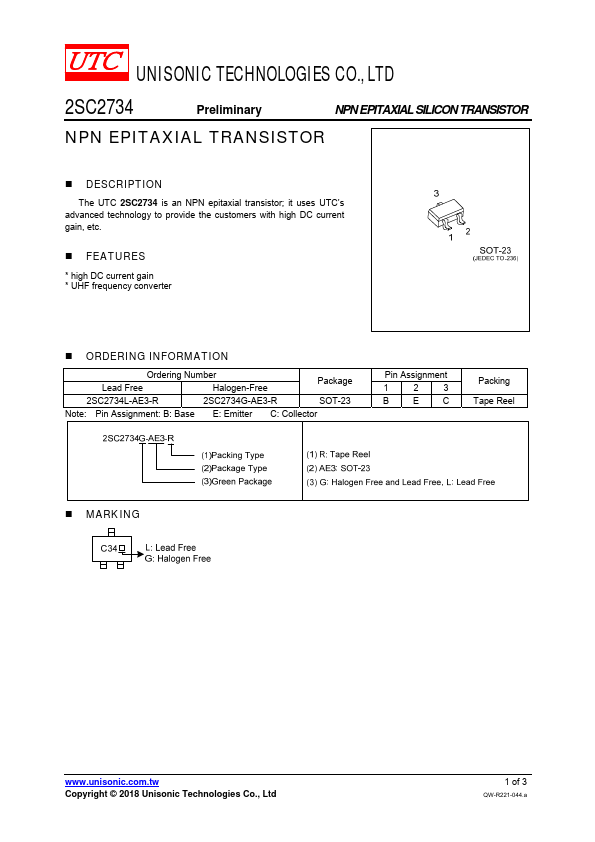

Unisonic Technologies 2SC2734
2SC2734 is an NPN epitaxial transistor; it uses UTC’s advanced technology to provide the customers with high DC current gain, etc.| Part No. | 2SC2734 |
|---|---|
| Datasheet | 2SC2734 Download |
| Manufacturer |  Unisonic Technologies |
| Description | NPN EPITAXIAL SILICON TRANSISTOR |
| Buy | Stock & Price |
DESCRIPTION
The UTC●
FEATURES
* high DC current gain * UHF frequency converter● ORDERING INFORMATION Ordering Number Lead Free Halogen-Free Package 2SC2734L-AE3-R 2SC2734G-AE3-R SOT-23 Note: Pin Assignment: B: Base E: Emitter C: Collector Pin Assignment 1 2 3 B E C Packing Tape Reel
● MARKING Copyright © 2018 Unisonic Technologies Co., Ltd 1 of 3 QW-R221-044.a 2SC2734 Preliminary NPN EPITAXIAL SILICON TRANSISTOR
●

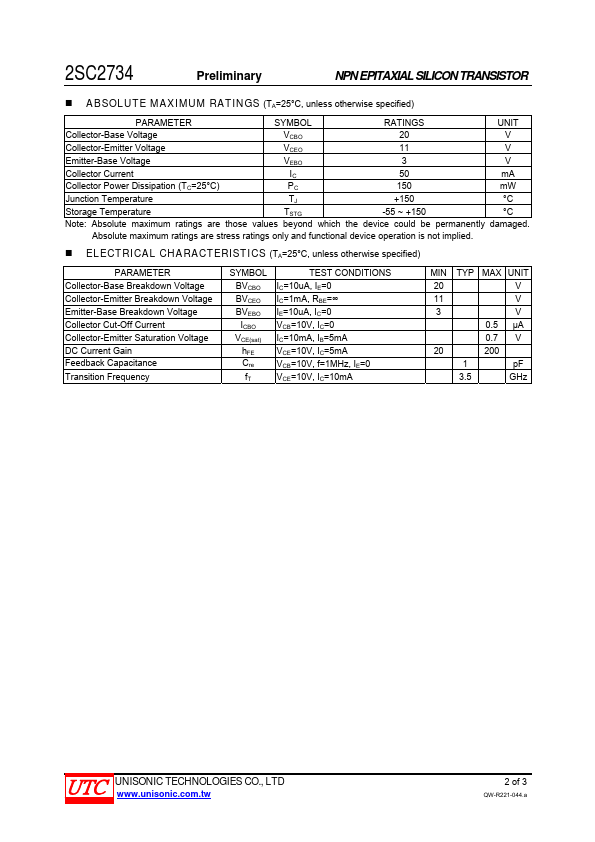

ABSOLUTE MAXIMUM RATINGS
(TA=25°C, unless otherwise specified) PARAMETER SYMBOL RATINGS UNIT Collector-Base Voltage VCBO 20 V Collector-Emitter Voltage Emitter-Base Voltage VCEO 11 V VEBO 3 V Collector Current IC Collector Power Dissipation (TC=25°C) PC 50 mA 150 mW Junction Temperature TJ +150 °C Storage Temperature TSTG -55 ~ +150 °C Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged. Absolute maximum ratings are stress ratings only and functional device operation is not implied.●
ELECTRICAL CHARACTERISTICS
(TA=25°C, unle...
