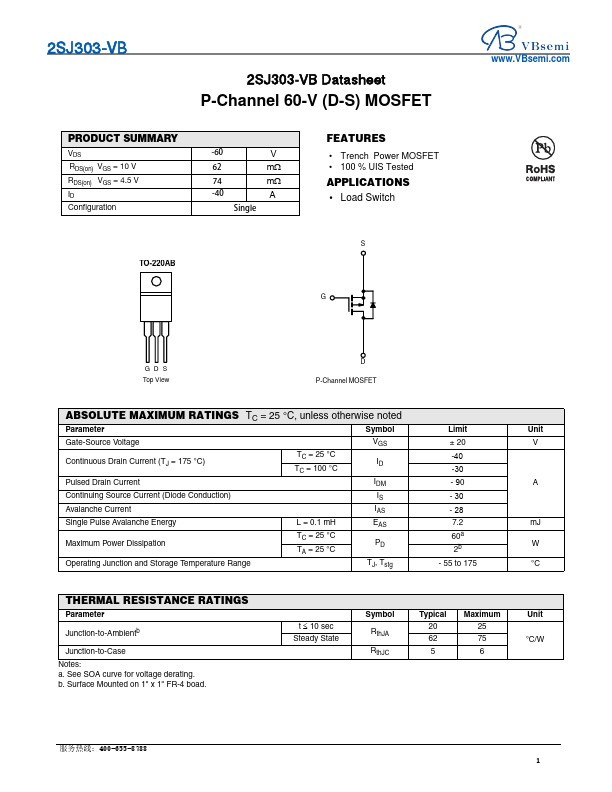

VBsemi Electronics 2SJ303
60V P-Channel MOSFET
| Part No. | 2SJ303 |
|---|---|
| Datasheet | 2SJ303 Download |
| Manufacturer | VBsemi Electronics |
| Description | 60V P-Channel MOSFET |
| Buy | Stock & Price |
FEATURES
● Trench Power MOSFET● 100 % UIS Tested
APPLICATIONS
● Load Switch TO-220AB S G GD S Top View D P-Channel MOSFETABSOLUTE MAXIMUM RATINGS

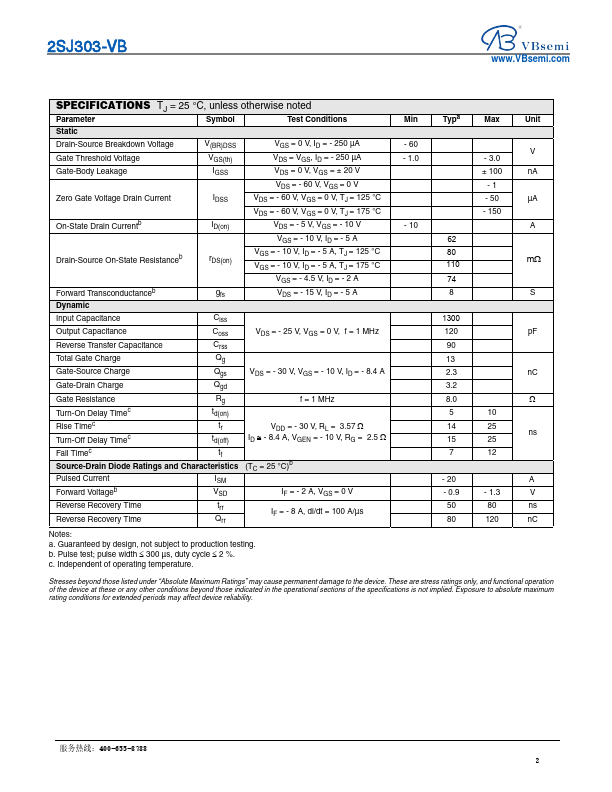

TC = 25 °C, unless otherwise noted Parameter Symbol Limit Unit Gate-Source Voltage VGS ± 20 V Continuous Drain Current (TJ = 175 °C) TC = 25 °C TC = 100 °C ID -40 -30 Pulsed Drain Current IDM - 90 A Continuing Source Current (Diode Conduction) IS - 30 Avalanche Current IAS - 28 Single Pulse Avalanche Energy Maximum Power Dissipation L = 0.1 mH EAS 7.2 mJ TC = 25 °C TA = 25 °C PD 60a 2b W Operating Junction and Storage Temperature Range TJ, Tstg - 55 to 175 °C THERMAL RESISTANCE RATINGS Parameter Junction-to-Ambientb Junction-to-Case Notes: a. See SOA curve for voltage derating. b. Surface Mounted on 1" x 1" FR-4 boad. t ≤ 10 sec Steady State Symbol RthJA RthJC Typical 20 62 5 Maximum 25 75 6 Unit °C/W 服务热线：400-655-8788 1 2SJ303-VB SPECIFICATIONS TJ = 25 °C, unless otherwise noted Parameter Symbol Test Conditions Static Drain-Source Breakdow...
