2SJ492-VB

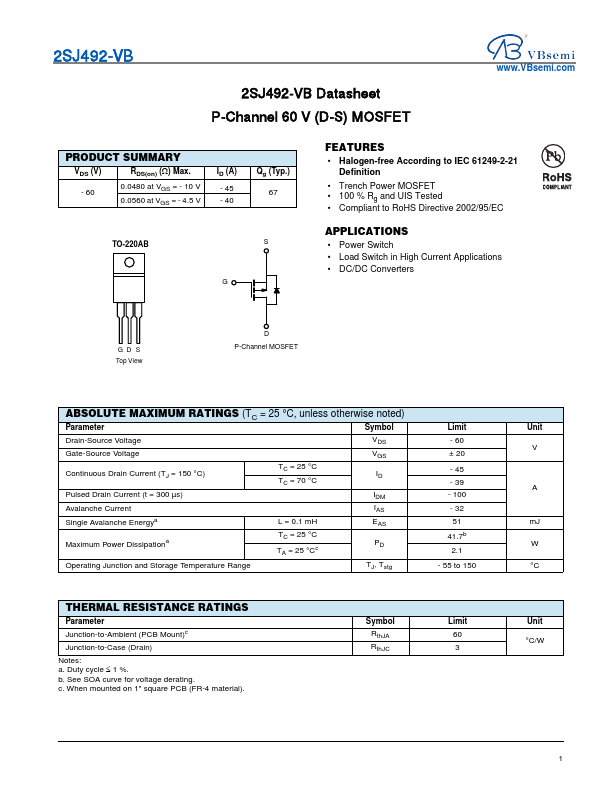

2SJ492-VB Datasheet P-Channel 60 V (D-S) MOSFET
www.VBsemi.com
PRODUCT SUMMARY
VDS (V)
RDS(on) () Max.
- 60
0.0480 at VGS = - 10 V
0.0560 at VGS = - 4.5 V
ID (A) - 45 - 40
Qg (Typ.) 67
TO-220AB
S
G
FEATURES • Halogen-free According to IEC 61249-2-21
Definition • Trench Power MOSFET • 100 % Rg and UIS Tested • Compliant to RoHS Directive 2002/95/EC
APPLICATIONS • Power Switch • Load Switch in High Current Applications • DC/DC Converters
GD S Top View
D P-Channel MOSFET
ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted)
Parameter
Symbol
Drain-Source Voltage
VDS
Gate-Source Voltage
VGS
Continuous Drain Current (TJ = 150 °C)
TC = 25 °C TC = 70 °C
ID
Pulsed Drain Current (t = 300 µs)
IDM
Avalanche Current
IAS
Single Avalanche Energya
L = 0.
2SJ492 Datasheet
