Datasheet Details
| Part number | 2SK2211 |
|---|---|
| Manufacturer | VBsemi |
| File Size | 255.47 KB |
| Description | 30V N-Channel MOSFET |
| Datasheet | 2SK2211-VBsemi.pdf |
|
|

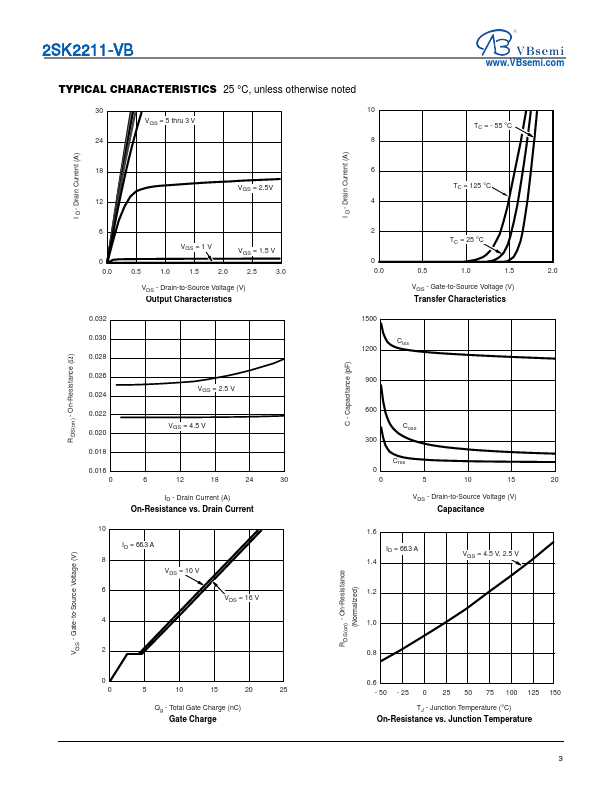

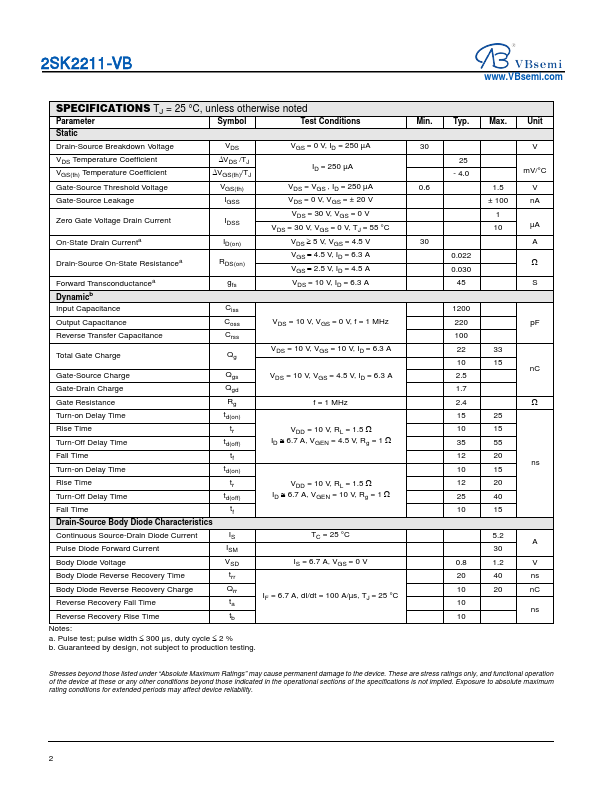

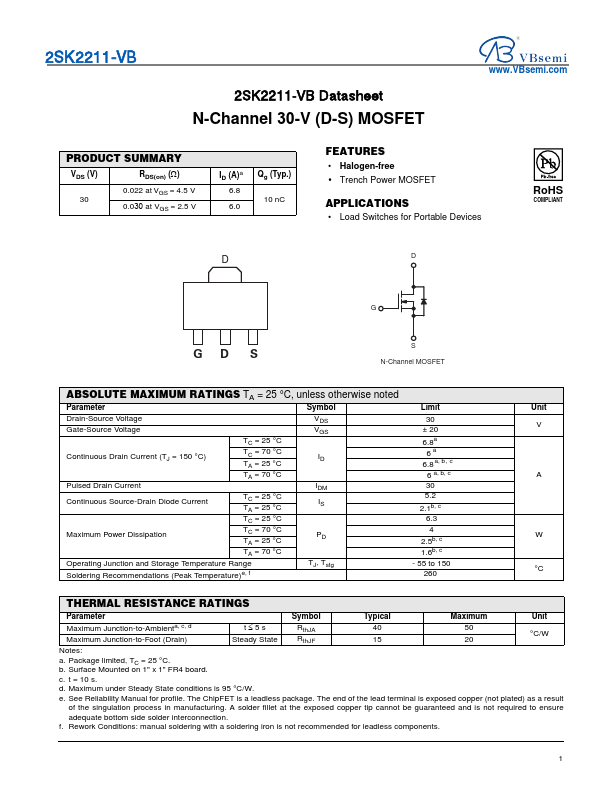

Overview: 2SK2211-VB 2SK2211-VB Datasheet N-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.022 at VGS = 4.5 V 30 0.030 at VGS = 2.5 V ID (A)a 6.8 6.0 Qg (Typ.
| Part number | 2SK2211 |
|---|---|
| Manufacturer | VBsemi |
| File Size | 255.47 KB |
| Description | 30V N-Channel MOSFET |
| Datasheet | 2SK2211-VBsemi.pdf |
|
|
|
| Brand Logo | Part Number | Description | Manufacturer |
|---|---|---|---|
 |
2SK2211 | Silicon N-Channel MOSFET | Panasonic Semiconductor |
 |
2SK2211 | N-Channel MOSFET | Kexin |
