AO4930 - 30V Dual N-Channel MOSFET

VBsemi

Key Features

Halogen-free According to IEC 61249-2-21 Definition.
Trench Power MOSFET.
100 % UIS Tested.
100 % Rg Tested.
Compliant to RoHS Directive 2002/95/EC SO-8 D2 1 D2 2 G1 3 S 1 /A 4 Top View 8 G2 7 D1/S2 /C 6 D1/S2 /C 5 D1/S2 /C.

AO4930 30v dual n-channel mosfet by VBsemi - Datasheet Preview

Datasheet Details

Part number	AO4930
Manufacturer	VBsemi
File Size	263.09 KB
Description	30V Dual N-Channel MOSFET
Datasheet	AO4930 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
AO4930	Dual N-Channel Enhancement Mode Field Effect Transistor	Alpha & Omega Semiconductors
AO4932	Asymmetric Dual N-Channel MOSFET	Alpha & Omega Semiconductors
AO4932	Dual N-Channel MOSFET	Kexin
AO4938	Dual N-Channel MOSFET	Kexin
AO4900	Dual N-Channel Enhancement Mode Field Effect Transistor	Alpha & Omega Semiconductors

Other Datasheets by VBsemi

Part Number	Description
AO4932	30V Dual N-Channel MOSFET
AO4938	30V Dual N-Channel MOSFET
AO4900	Dual N-Channel MOSFET
AO4906	30V Dual N-Channel MOSFET
AO4912	Dual N-Channel 30V MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

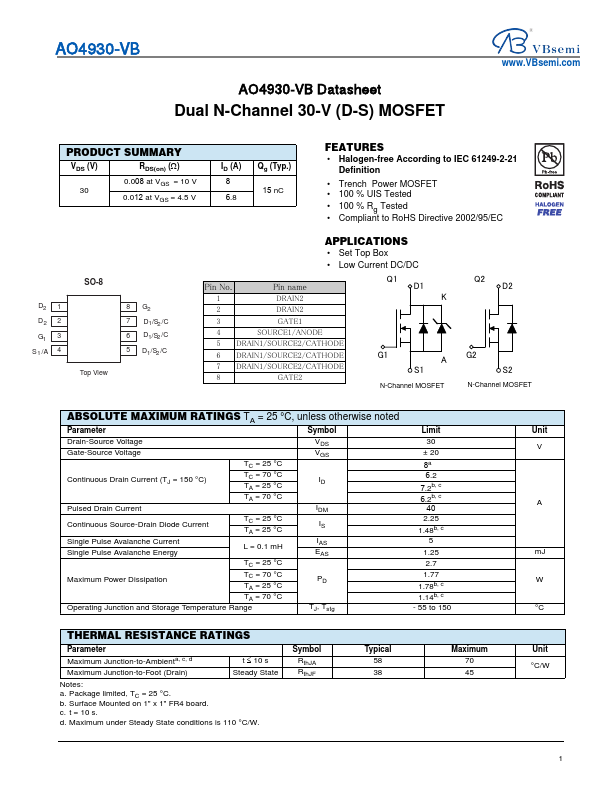

AO4930-VB AO4930-VB Datasheet Dual N-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.008 at VGS = 10 V 30 0.012 at VGS = 4.5 V ID (A) 8 6.8 Qg (Typ.
