AO4940
AO4940 is 30V Dual N-Channel MOSFET manufactured by VBsemi.
AO4940-VB

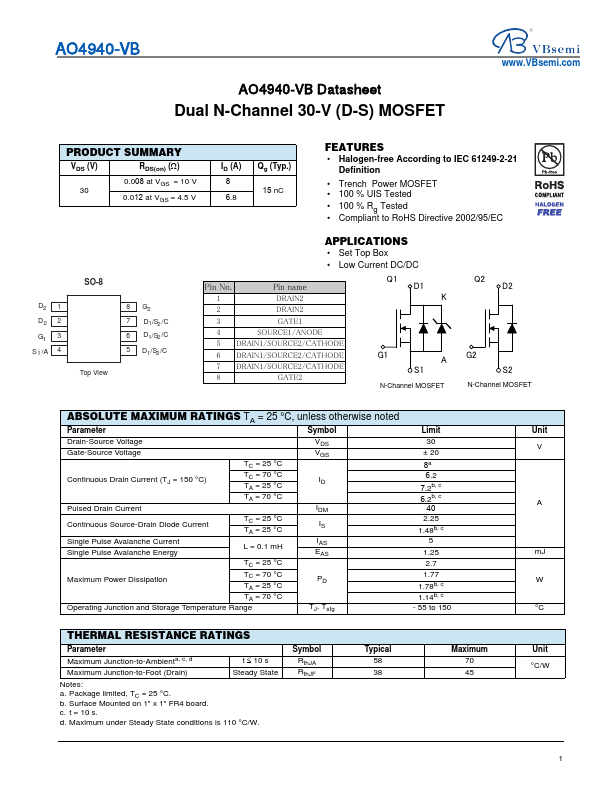

AO4940-VB Datasheet
Dual N-Channel 30-V (D-S) MOSFET
.VBsemi.
PRODUCT SUMMARY
VDS (V)
RDS(on) (Ω)
0.008 at VGS = 10 V 30
0.012 at VGS = 4.5 V
ID (A) 8 6.8
Qg (Typ.) 15 nC
Features
- Halogen-free According to IEC 61249-2-21
Definition
- Trench Power MOSFET
- 100 % UIS Tested
- 100 % Rg Tested
- pliant to RoHS Directive 2002/95/EC
SO-8
D2 1 D2 2 G1 3 S 1 /A 4
Top View
8 G2 7 D1/S2 /C 6 D1/S2 /C 5 D1/S2 /C
APPLICATIONS
- Set Top Box
- Low Current DC/DC
㪧㫀㫅㩷㪥㫆㪅
㪈
㪧㫀㫅㩷㫅㪸㫄㪼
㪛㪩㪘㪠㪥㪉
䎴䎔 ᎋ፸...
