AO4948
AO4948 is Dual N-Channel MOSFET manufactured by Kexin Semiconductor.
SMD Type
Dual N-Channel MOSFET AO4948 (KO4948)
MOSFET
- Features

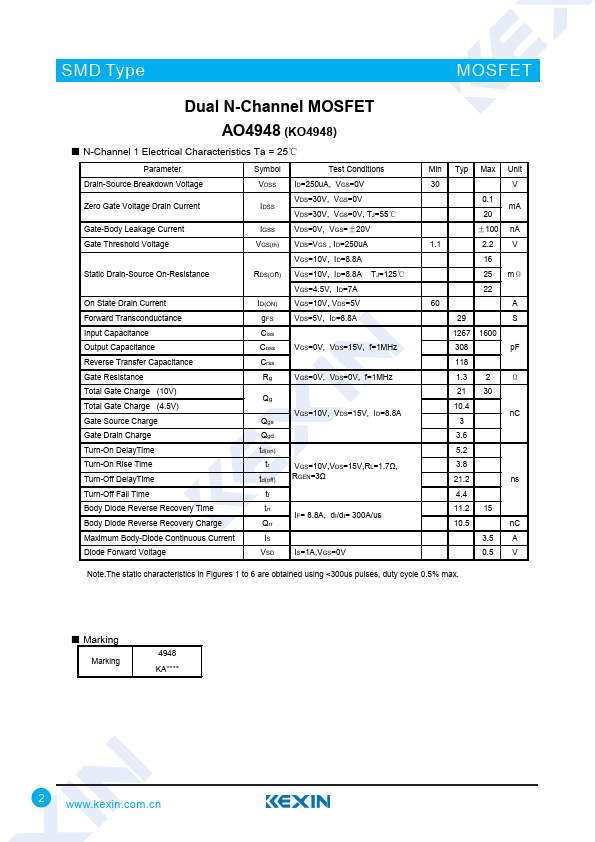

N-Channel 1
- VDS (V) = 30V
- ID = 8.8 A (VGS = 10V)
- RDS(ON) ＜ 16mΩ (VGS = 10V)
- RDS(ON) ＜ 22mΩ (VGS = 4.5V)
- SRFETTM Soft Recovery MOSFET:Integrated Schottky Diode

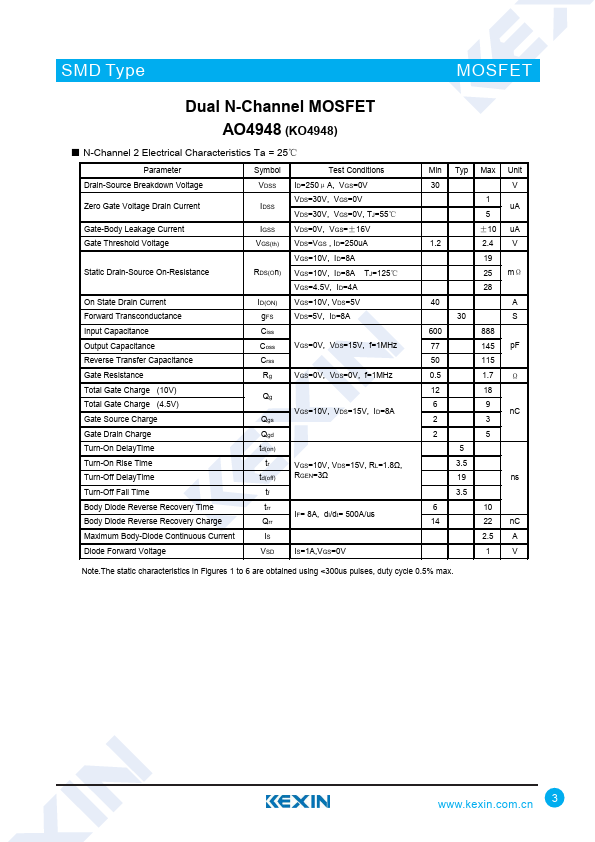

N-Channel 2
- VDS (V) = 30V
- ID = 8 A (VGS = 10V)
- RDS(ON) ＜ 19mΩ (VGS = 10V)
- RDS(ON) ＜ 28mΩ (VGS = 4.5V)
- ESD Rating: 2KV HBM
D1
D2
+0.04 0.21 -0.02
SOP-8
Unit:mm
1.50 0.15
1 S1 2 G1 3 S2 4 G2
5 D2 6 D2 7 D1 8 D1
G2
G1
S1
S2
-...
