AO4940 - Dual N-Channel MOSFET

Key Features

  • s N-Channel 1.
  • VDS (V) = 30V.
  • ID = 9.1 A (VGS = 10V).
  • RDS(ON) ＜ 15mΩ (VGS = 10V).
  • RDS(ON) ＜ 23mΩ (VGS = 4.5V).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4940 Dual N-Channel Enhancement Mode Field Effect Transistor Alpha & Omega Semiconductors
AO4940 30V Dual N-Channel MOSFET VBsemi
AO4944 Dual N-Channel Enhancement Mode Field Effect Transistor Alpha & Omega Semiconductors
AO4946 30V Dual N-Channel MOSFET Alpha & Omega Semiconductors
AO4948 Dual N-Channel Enhancement Mode Field Effect Transistor VBsemi

Other Datasheets by Kexin Semiconductor

Part Number Description
AO4948 Dual N-Channel MOSFET
AO4900 Dual N-Channel MOSFET
AO4906 Dual N-Channel MOSFET
AO4912 Dual N-Channel MOSFET
AO4914 Dual N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

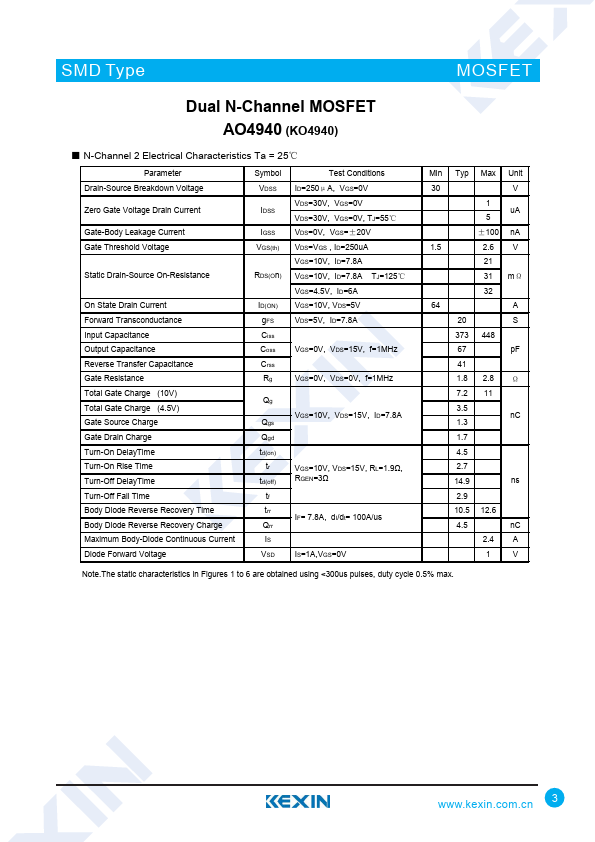

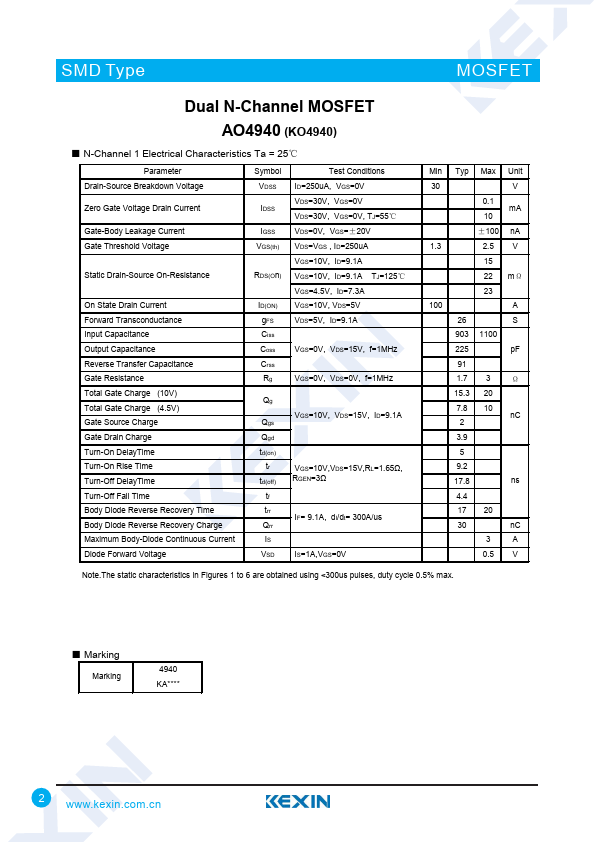

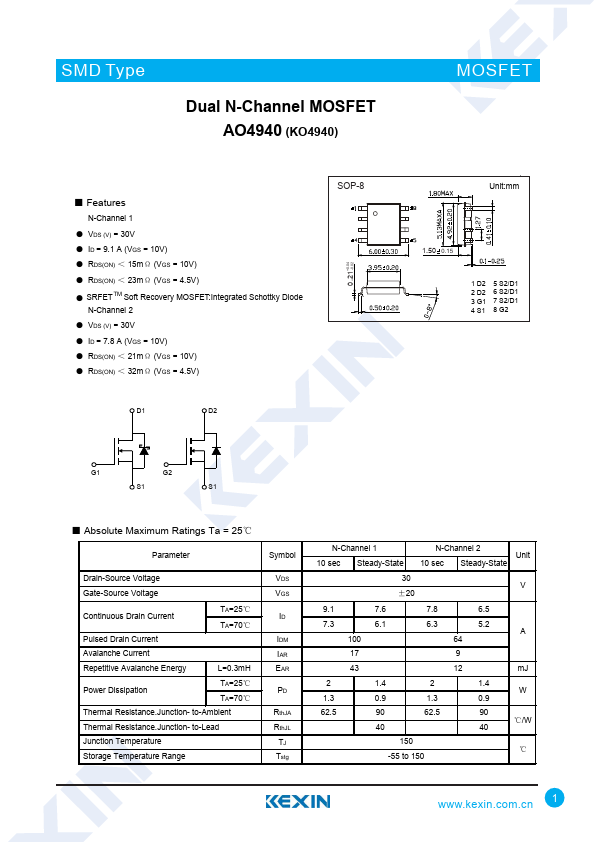

SMD Type Dual N-Channel MOSFET AO4940 (KO4940) ■ Features N-Channel 1 ● VDS (V) = 30V ● ID = 9.1 A (VGS = 10V) ● RDS(ON) ＜ 15mΩ (VGS = 10V) ● RDS(ON) ＜ 23mΩ (VGS = 4.5V) ● SRFETTM Soft Recovery MOSFET:Integrated Schottky Diode N-Channel 2 ● VDS (V) = 30V ● ID = 7.8 A (VGS = 10V) ● RDS(ON) ＜ 21mΩ (VGS = 10V) ● RDS(ON) ＜ 32mΩ (VGS = 4.5V) D1 D2 +0.04 0.21 -0.02 SOP-8 MOSFET Unit:mm 1.50 0.15 1 D2 2 D2 3 G1 4 S1 5 S2/D1 6 S2/D1 7 S2/D1 8 G2 G1 G2 S1 S1 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current TA=25℃ TA=70℃ Avalanche Current Repetitive Avalanche Energy L=0.3mH Power Dissipation TA=25℃ TA=70℃ Thermal Resistance.Junction- to-Ambient Thermal Resistance.
