FQD12P10
FQD12P10 is 100V P-Channel MOSFET manufactured by VBsemi.
FQD12P10-VB

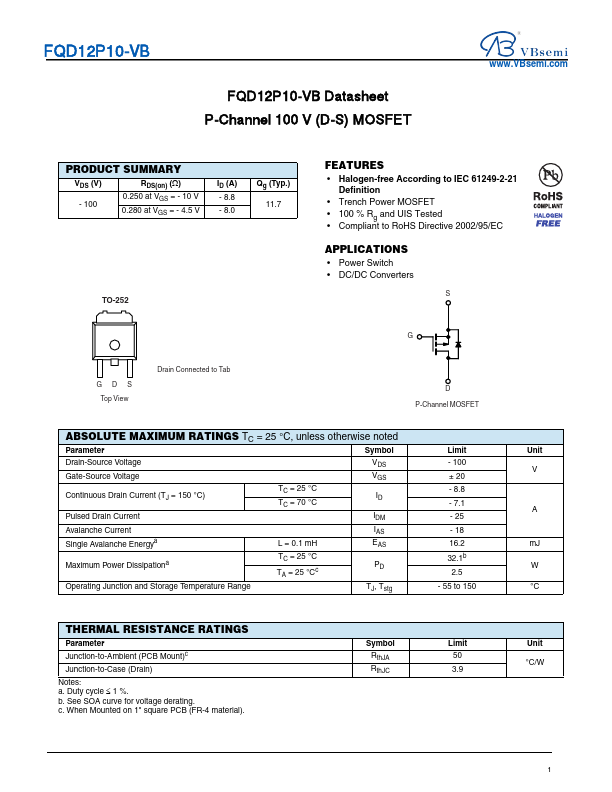

FQD12P10-VB Datasheet P-Channel 100 V (D-S) MOSFET
.VBsemi.
PRODUCT SUMMARY
VDS (V)
RDS(on) (Ω)
- 100
0.250 at VGS =
- 10 V 0.280 at VGS =
- 4.5 V
ID (A)
- 8.8
- 8.0
Qg (Typ.) 11.7
TO-252
Features
- Halogen-free According to IEC 61249-2-21
Definition
- Trench Power MOSFET
- 100 % Rg and UIS Tested
- pliant to Ro HS Directive 2002/95/EC
APPLICATIONS
- Power Switch
- DC/DC Converters
GDS Top View
Drain Connected to Tab
D P-Channel...
