MMDF2P02HDR2G
MMDF2P02HDR2G is Dual P-Channel 30-V MOSFET manufactured by VBsemi.
MMDF2P02HDR2G-VB

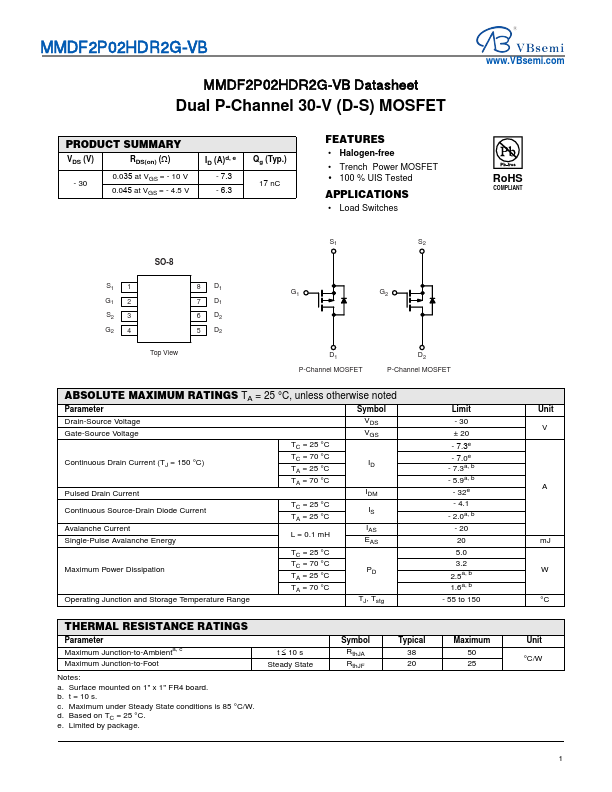

MMDF2P02HDR2G-VB Datasheet
Dual P-Channel 30-V (D-S) MOSFET
PRODUCT SUMMARY
VDS (V)
RDS(on) (Ω)
- 30
0.035 at VGS =
- 10 V
0.045 at VGS =
- 4.5 V
ID (A)d, e
- 7.3
- 6.3
Qg (Typ.) 17 nC
Features
- Halogen-free
- Trench Power MOSFET
- 100 % UIS Tested
APPLICATIONS
- Load Switches
.VBsemi.
RoHS
PLIANT
S1 1 G1 2 S2 3 G2 4
SO-8 Top View
8 D1 7 D1 6 D2 5...
