Datasheet Details
| Part number | IRF9540S |
|---|---|
| Manufacturer | Vishay |
| File Size | 203.05 KB |
| Description | Power MOSFET |
| Datasheet | IRF9540S-VishaySiliconix.pdf |
|
|

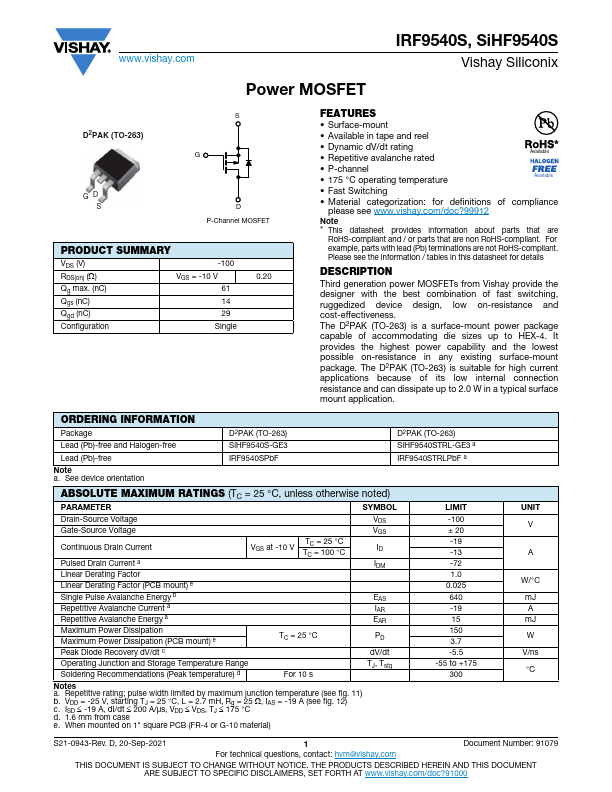

Overview: www.vishay.com IRF9540S, SiHF9540S Vishay Siliconix Power MOSFET D2PAK (TO-263) S G GD S D P-Channel MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () Qg max. (nC) Qgs (nC) Qgd (nC) Configuration -100 VGS = -10 V 61 0.
| Part number | IRF9540S |
|---|---|
| Manufacturer | Vishay |
| File Size | 203.05 KB |
| Description | Power MOSFET |
| Datasheet | IRF9540S-VishaySiliconix.pdf |
|
|
|
Third generation power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The D2PAK (TO-263) is a surface-mount power package capable of accommodating die sizes up to HEX-4.
It provides the highest power capability and the lowest possible on-resistance in any existing surface-mount package.
The D2PAK (TO-263) is suitable for high current applications because of its low internal connection resistance and can dissipate up to 2.0 W in a typical surface mount application.
