BZG05C13 - Zener Diodes

Download the BZG05C13 datasheet PDF (BZG05C3V3 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for zener diodes.

Features

  • High reliability.
  • Voltage range 3.3 V to 100 V.
  • Fits onto 5 mm SMD footpads.
  • Wave and reflow solderable.
  • AEC-Q101 qualified available.
  • Base P/N-E3 - RoHS-compliant, commercial grade.
  • Base P/NHE3 - RoHS-compliant, AEC-Q101 qualified.
  • Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BZG05C3V3-Vishay.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Other Datasheets by Vishay

Full PDF Text Transcription

Click to expand full text

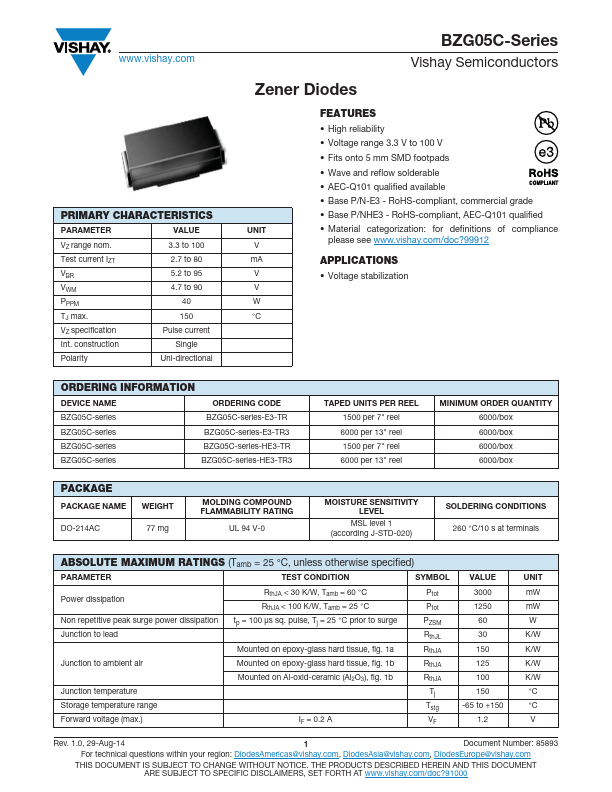

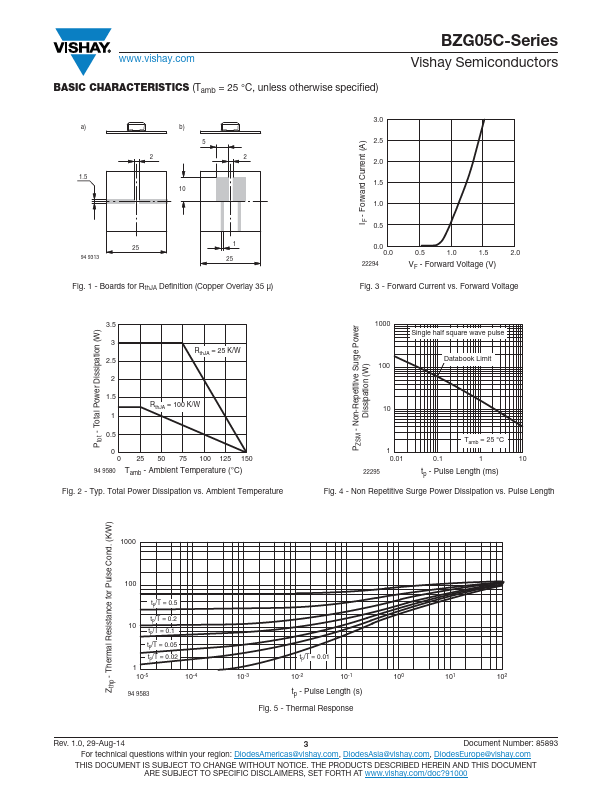

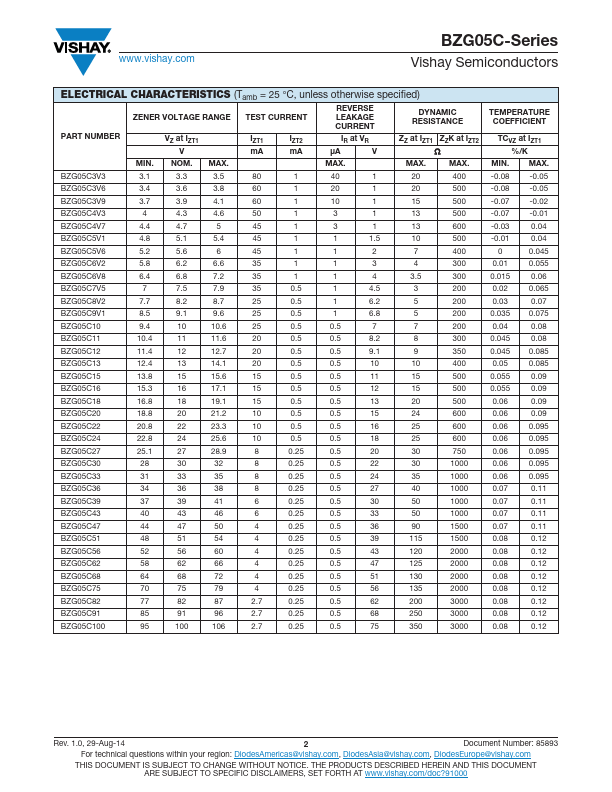

www.vishay.com PRIMARY CHARACTERISTICS PARAMETER VALUE VZ range nom. Test current IZT VBR VWM PPPM TJ max. VZ specification Int. construction 3.3 to 100 2.7 to 80 5.2 to 95 4.7 to 90 40 150 Pulse current Single Polarity Uni-directional BZG05C-Series Vishay Semiconductors Zener Diodes UNIT V mA V V W °C FEATURES • High reliability • Voltage range 3.3 V to 100 V • Fits onto 5 mm SMD footpads • Wave and reflow solderable • AEC-Q101 qualified available • Base P/N-E3 - RoHS-compliant, commercial grade • Base P/NHE3 - RoHS-compliant, AEC-Q101 qualified • Material categorization: for definitions of compliance please see www.vishay.
