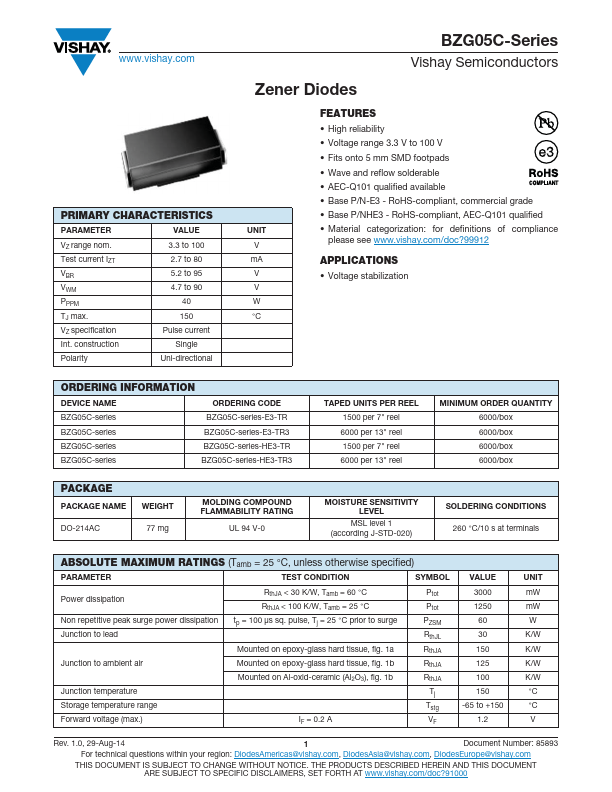

BZG05C16
FEATURES
- High reliability
- Voltage range 3.3 V to 100 V
- Fits onto 5 mm SMD footpads
- Wave and reflow solderable
- AEC-Q101 qualified available
- Base P/N-E3
- Ro HS-pliant, mercial grade
- Base P/NHE3
- Ro HS-pliant, AEC-Q101 qualified
- Material categorization: for definitions of pliance please see .vishay./doc?99912
APPLICATIONS
- Voltage stabilization
ORDERING INFORMATION
DEVICE NAME
ORDERING CODE
BZG05C-series
BZG05C-series-E3-TR
BZG05C-series
BZG05C-series-E3-TR3
BZG05C-series
BZG05C-series-HE3-TR
BZG05C-series
BZG05C-series-HE3-TR3
TAPED UNITS PER REEL 1500 per 7" reel 6000 per 13" reel 1500 per 7" reel 6000 per 13" reel
MINIMUM ORDER QUANTITY 6000/box 6000/box 6000/box 6000/box
PACKAGE
PACKAGE NAME
WEIGHT
DO-214AC
77 mg
MOLDING POUND FLAMMABILITY RATING
UL 94 V-0
MOISTURE SENSITIVITY LEVEL
MSL level 1 (according J-STD-020)
SOLDERING CONDITIONS 260 °C/10 s at terminals
ABSOLUTE MAXIMUM RATINGS (Tamb = 25 °C, unless otherwise specified)
PARAM...
