BZG05C15 - Zener Diodes

Download the BZG05C15 datasheet PDF. This datasheet also covers the BZG05C3V3 variant, as both devices belong to the same zener diodes family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BZG05C3V3-Vishay.pdf) that lists specifications for multiple related part numbers.

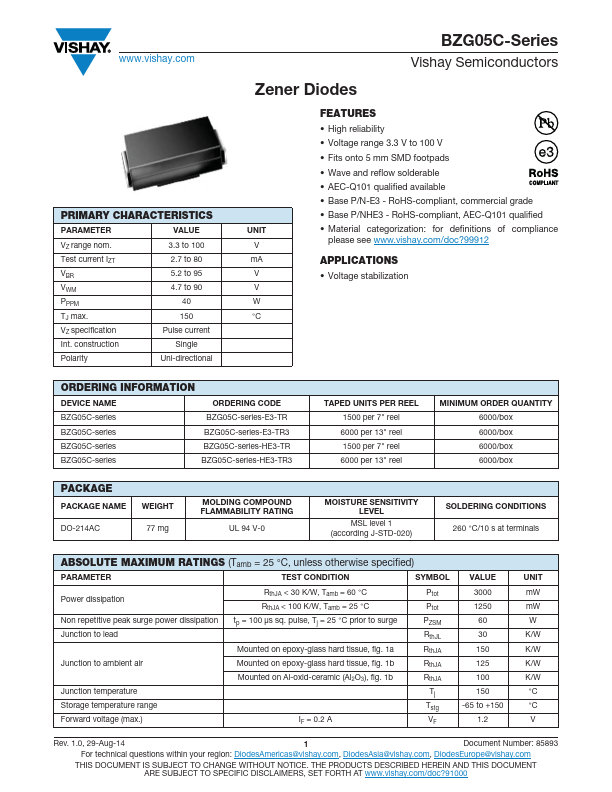

Overview

www.vishay.com PRIMARY CHARACTERISTICS PARAMETER VALUE VZ range nom.

Test current IZT VBR VWM PPPM TJ max.

VZ specification Int.

Key Features

  • High reliability.
  • Voltage range 3.3 V to 100 V.
  • Fits onto 5 mm SMD footpads.
  • Wave and reflow solderable.
  • AEC-Q101 qualified available.
  • Base P/N-E3 - RoHS-compliant, commercial grade.
  • Base P/NHE3 - RoHS-compliant, AEC-Q101 qualified.
  • Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
