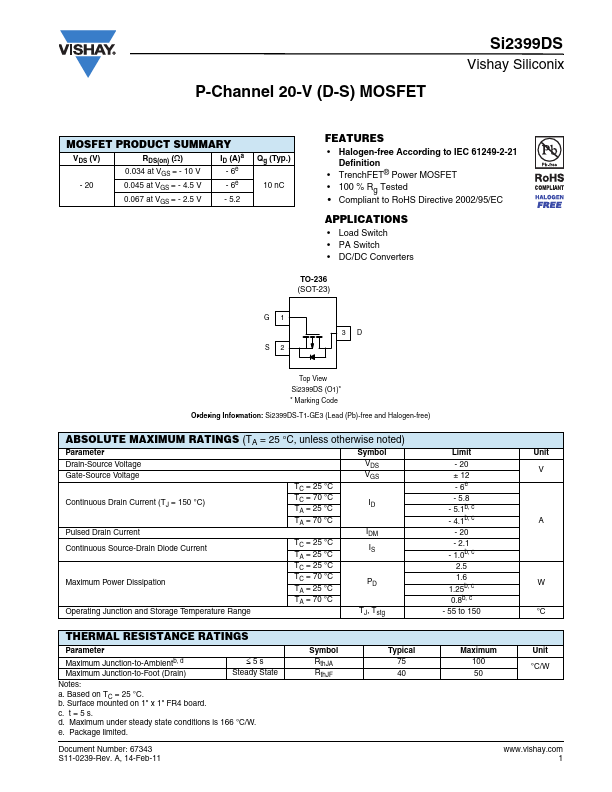

SI2399DS
SI2399DS is 20V P-Channel MOSFET manufactured by Vishay.
FEATURES
- Halogen-free According to IEC 61249-2-21
Definition
- Trench FET® Power MOSFET
- 100 % Rg Tested
- pliant to Ro HS Directive 2002/95/EC
APPLICATIONS
- Load Switch
- PA Switch
- DC/DC Converters
TO-236 (SOT-23)
G1 S2
3D
Top View Si2399DS (O1)-
- Marking Code
Ordering Information: Si2399DS-T1-GE3 (Lead (Pb)-free and Halogen-free)
ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted)
Parameter
Symbol
Limit
Unit
Drain-Source Voltage Gate-Source Voltage
Continuous Drain Current (TJ = 150 °C)
TC = 25 °C
TC = 70 °C TA = 25 °C
TA = 70 °C
- 20
± 12
- 6e
- 5.8
- 5.1b, c
- 4.1b, c
Pulsed Drain Current
-...
