HT7550-1 Overview
Key Specifications
Package: SOT-89
Pins: 3
Max Voltage (typical range): 24 V
Min Voltage (typical range): 4 V

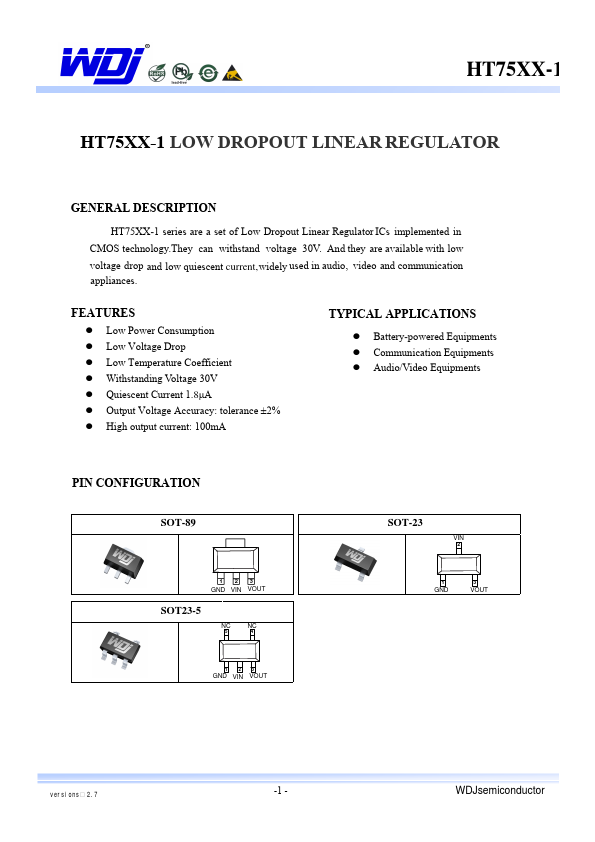

Description
HT75XX-1 series are a set of Low Dropout Linear Regulator ICs implemented in CMOS can withstand voltage 30V. And they are available with low voltage drop and low quiescent current,widely used in audio, video and communication appliances.
Key Features
- Low Power Consumption
- Low Voltage Drop
- Low Temperature Coefficient
- Withstanding Voltage 30V
- Quiescent Current 1.8μA
