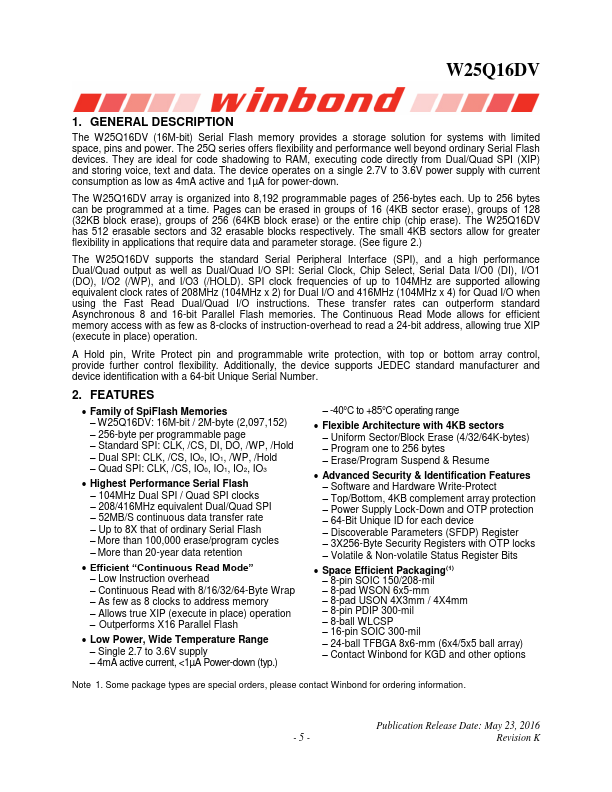

25Q16DV Overview
The W25Q16DV (16M-bit) Serial Flash memory provides a storage solution for systems with limited space, pins and power. The 25Q series offers flexibility and performance well beyond ordinary Serial Flash devices. They are ideal for code shadowing to RAM, executing code directly from Dual/Quad SPI (XIP) and storing voice, text and data.
25Q16DV Key Features
- Family of SpiFlash Memories
- W25Q16DV: 16M-bit / 2M-byte (2,097,152)
- 256-byte per programmable page
- Standard SPI: CLK, /CS, DI, DO, /WP, /Hold
- Dual SPI: CLK, /CS, IO0, IO1, /WP, /Hold
- Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3
- Highest Performance Serial Flash
- 104MHz Dual SPI / Quad SPI clocks
- 208/416MHz equivalent Dual/Quad SPI
- 52MB/S continuous data transfer rate
