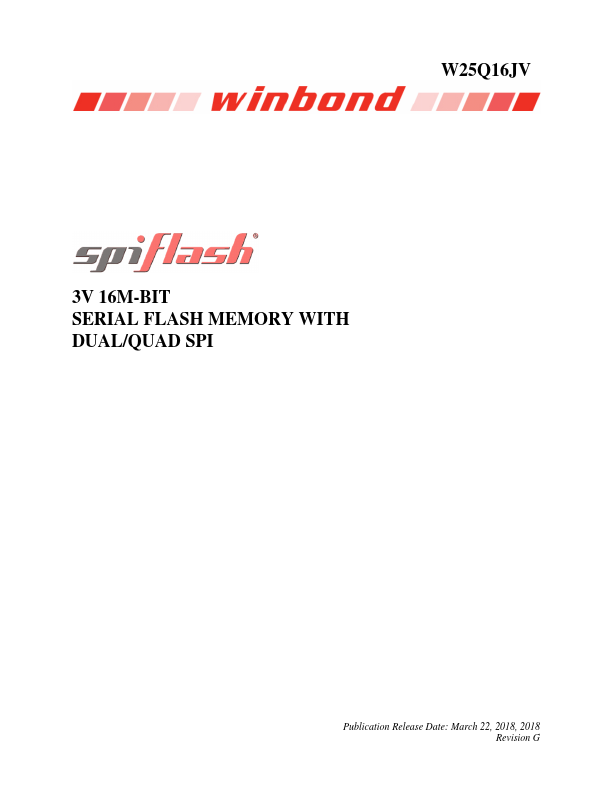

25Q16JV
25Q16JV is 3V 16M-BIT SERIAL FLASH MEMORY manufactured by Winbond.

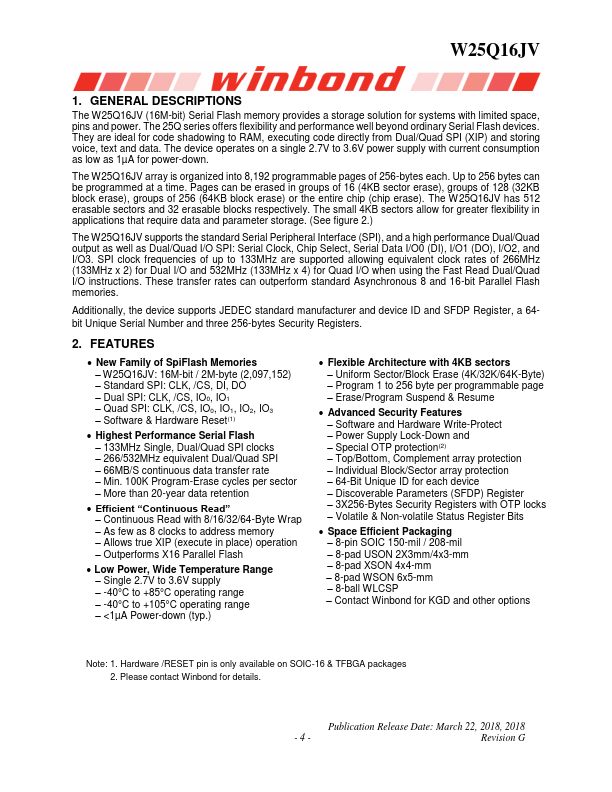

FEATURES
- New Family of Spi Flash Memories
- W25Q16JV: 16M-bit / 2M-byte (2,097,152)
- Standard SPI: CLK, /CS, DI, DO
- Dual SPI: CLK, /CS, IO0, IO1
- Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3
- Software & Hardware Reset(1)
- Highest Performance Serial Flash
- 133MHz Single, Dual/Quad SPI clocks
- 266/532MHz equivalent Dual/Quad SPI
- 66MB/S continuous data transfer rate
- Min. 100K Program-Erase cycles per sector
- More than 20-year data retention
- Efficient “Continuous Read”
- Continuous Read with 8/16/32/64-Byte Wrap
- As few as 8 clocks to address memory
- Allows true XIP (execute in place) operation
- Outperforms X16 Parallel Flash
- Low Power, Wide Temperature Range
- Single 2.7V to 3.6V supply
- -40°C to +85°C operating range
- -40°C to +105°C operating range
- <1µA Power-down (typ.)
- Flexible Architecture with 4KB sectors
- Uniform Sector/Block Erase (4K/32K/64K-Byte)
- Program 1 to 256 byte per programmable page
- Erase/Program Suspend & Resume
- Advanced Security Features
- Software and Hardware Write-Protect
- Power Supply Lock-Down and
- Special OTP protection(2)
- Top/Bottom, plement array protection
- Individual Block/Sector array protection
- 64-Bit Unique ID for each device
-...
