25Q16FW Description

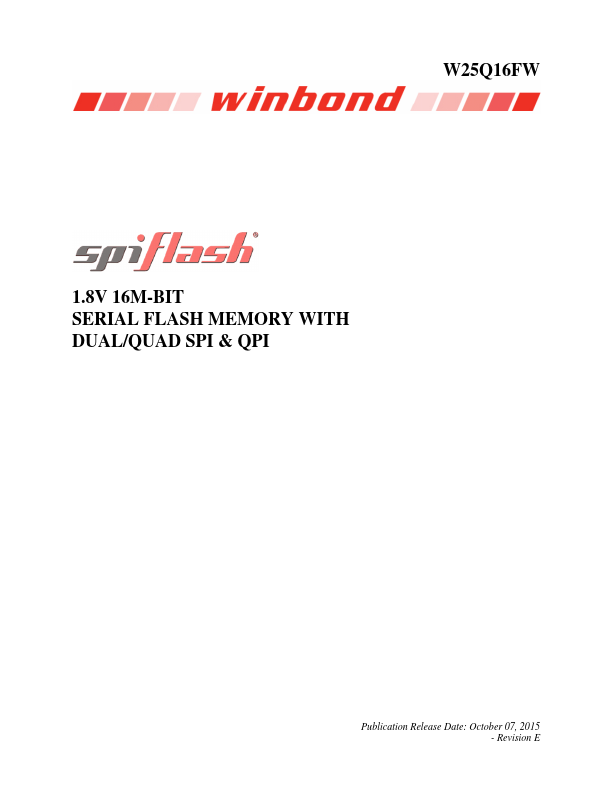

W25Q16FW 1.8V 16M-BIT SERIAL FLASH MEMORY WITH DUAL/QUAD SPI & QPI Publication Release Date: October 07, 2015 - Revision E W25Q16FW 1. GENERAL DESCRIPTIONS The W25Q16FW (16M-bit) Serial Flash memory provides a storage solution for systems with limited space, pins and power.
25Q16FW Key Features
- New Family of SpiFlash Memories
- W25Q16FW: 16M-bit / 2M-byte
- Standard SPI: CLK, /CS, DI, DO, /WP, /Hold
- Dual SPI: CLK, /CS, IO0, IO1, /WP, /Hold
- Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3
- QPI: CLK, /CS, IO0, IO1, IO2, IO3
- Software & Hardware Reset
- Highest Performance Serial Flash
- 104MHz Single, Dual/Quad SPI clocks
- 208/416MHz equivalent Dual/Quad SPI
