W25X80ALSNIG - 2.5V SERIAL FLASH MEMORY

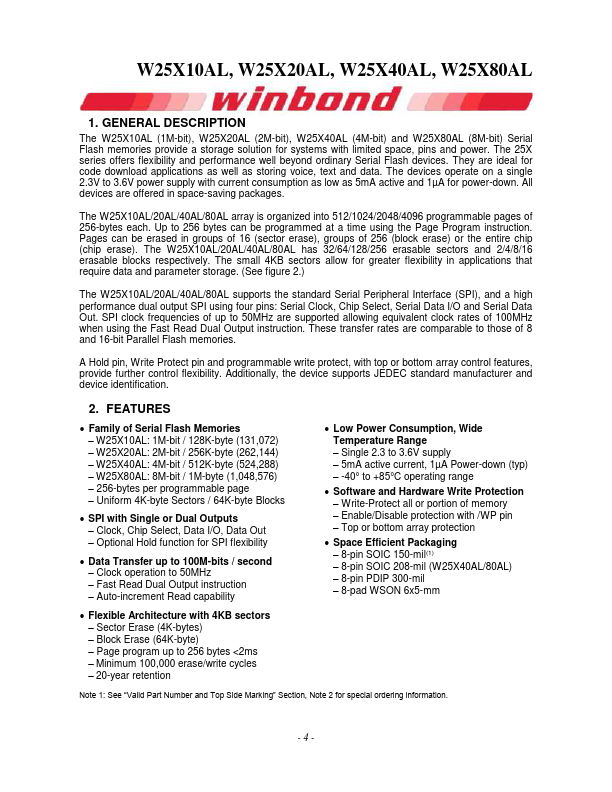

Download the W25X80ALSNIG datasheet PDF. This datasheet also covers the W25X40AL variant, as both devices belong to the same 2.5v serial flash memory family and are provided as variant models within a single manufacturer datasheet.

General Description

2.

Key Features

  • 4 3. PIN.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (W25X40AL-Winbond.pdf) that lists specifications for multiple related part numbers.

Full PDF Text Transcription for W25X80ALSNIG (Reference)

Note: Below is a high-fidelity text extraction (approx. 800 characters) for W25X80ALSNIG. For precise diagrams, and layout, please refer to the original PDF.

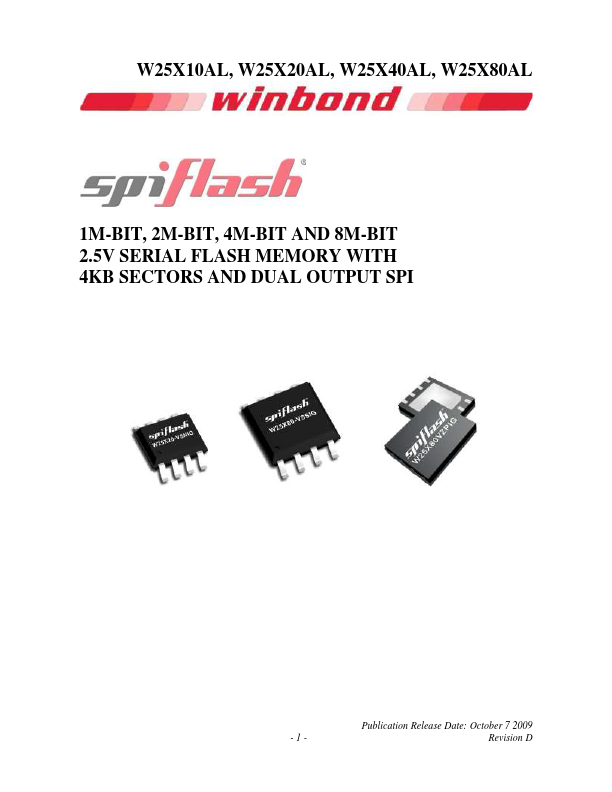

W25X10AL, W25X20AL, W25X40AL, W25X80AL 1M-BIT, 2M-BIT, 4M-BIT AND 8M-BIT 2.5V SERIAL FLASH MEMORY WITH 4KB SECTORS AND DUAL OUTPUT SPI Publication Release Date: October 7...

View more extracted text

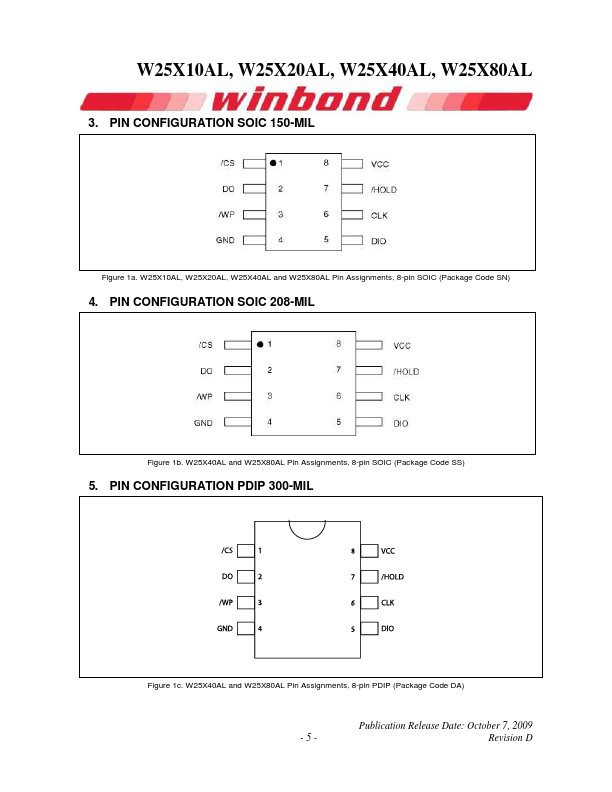

TH 4KB SECTORS AND DUAL OUTPUT SPI Publication Release Date: October 7 2009 -1- Revision D W25X10AL, W25X20AL, W25X40AL, W25X80AL Table of Contents 1. GENERAL DESCRIPTION.......................................................................................................... 4 2. FEATURES ................................................................................................................................. 4 3. PIN CONFIGURATION SOIC 150-MIL ....................................................................................... 5 4. PIN CONFIGURATION SOIC 208-MIL .................................................
