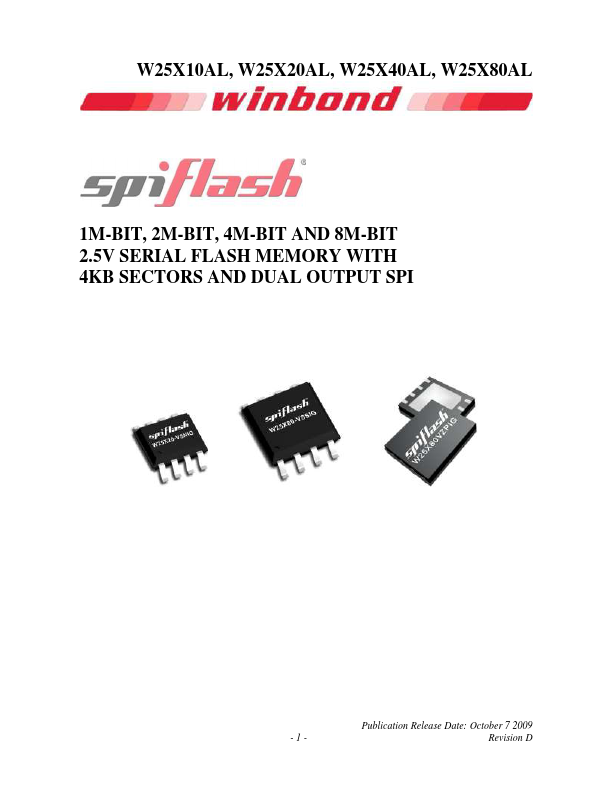

Datasheet Summary
W25X10AL, W25X20AL, W25X40AL, W25X80AL
1M-BIT, 2M-BIT, 4M-BIT AND 8M-BIT 2.5V SERIAL FLASH MEMORY WITH 4KB SECTORS AND DUAL OUTPUT SPI
Publication Release Date: October 7 2009
-1-
Revision D
W25X10AL, W25X20AL, W25X40AL, W25X80AL

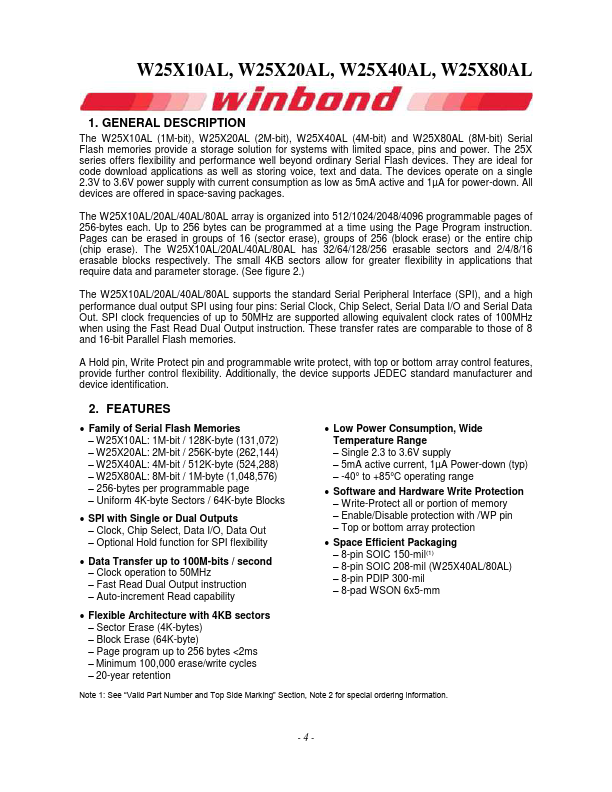

1. GENERAL DESCRIPTION
The W25X10AL (1M-bit), W25X20AL (2M-bit), W25X40AL (4M-bit) and W25X80AL (8M-bit) Serial Flash memories provide a storage solution for systems with limited space, pins and power. The 25X series offers flexibility and performance well beyond ordinary Serial Flash devices. They are ideal for code download applications as well as storing voice, text and data. The devices operate on a single 2.3V to 3.6V power supply with current...
