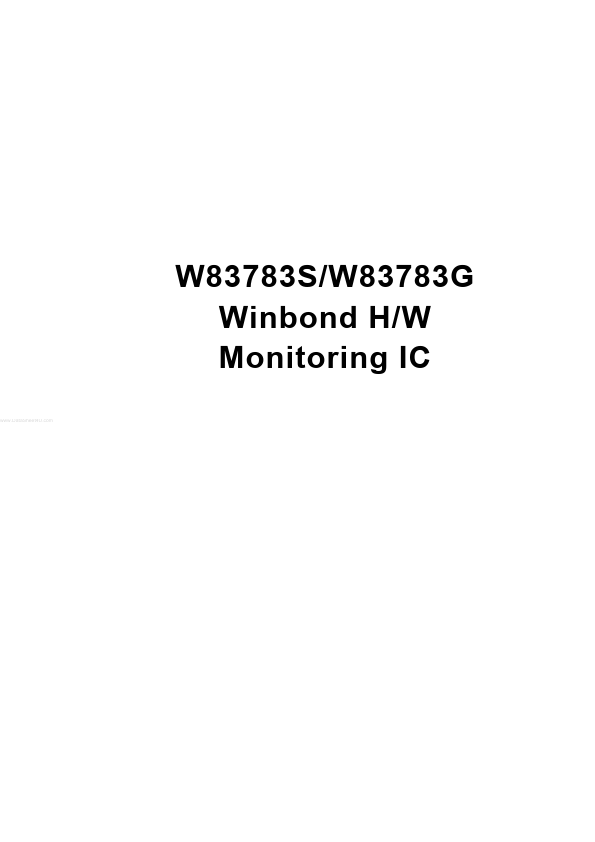

W83783S
Description
W83783S is an evolving version of W83782D --- Winbond's most popular hardware status monitoring IC.
Key Features
- 2.1 Monitoring Items
- 3 thermal inputs from remote thermistors or 2N3904 NPN-type transistors or PentiumTM II (Deschutes) thermal diode output
- 6 voltage inputs
- 3 fan speed monitoring inputs
- Case open detection input
- WATCHDOG parison of all monitored values
- Programmable hysteresis and setting points (alarm thresholds) for all monitored items 2.2 Actions Enabling
- Beep tone warning
- 2 PWM (pulse width modulation) outputs for fan speed control (MUX optional) --- Total up to 2 sets of fan speed monitoring and controlling
- Issue SMI#, OVT#, GPO# signals to activate system protection
