WF0096ATYAA3DNF10
WF0096ATYAA3DNF10 is TFT Display manufactured by WINSTAR Display.
Winstar Display Co., LTD
華凌光電股份有限公司
WEB: https://.winstar..tw E-mail: sales@winstar..tw

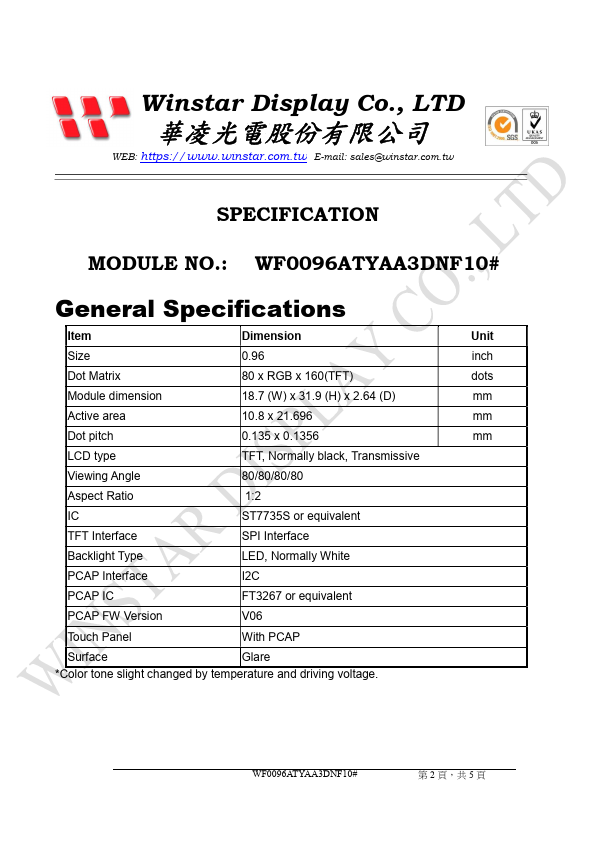

SPECIFICATION
MODULE NO.: WF0096ATYAA3DNF10#
General Specifications
Item
Dimension
Unit
Size
0.96 inch
Dot Matrix
80 x RGB x 160(TFT) dots
Module dimension
18.7 (W) x 31.9 (H) x 2.64 (D) mm
Active area
10.8 x 21.696 mm
Dot pitch
0.135 x 0.1356 mm
LCD type
TFT, Normally black, Transmissive
Viewing Angle
80/80/80/80
Aspect Ratio
1:2
ST7735S or equivalent
TFT Interface
SPI Interface
Backlight Type
LED, Normally...
