WF0299ATYAC2MNR0
WF0299ATYAC2MNR0 is TFT Display manufactured by WINSTAR Display.
Winstar Display Co., LTD
華凌光電股份有限公司
WEB: https://.winstar..tw E-mail: sales@winstar..tw

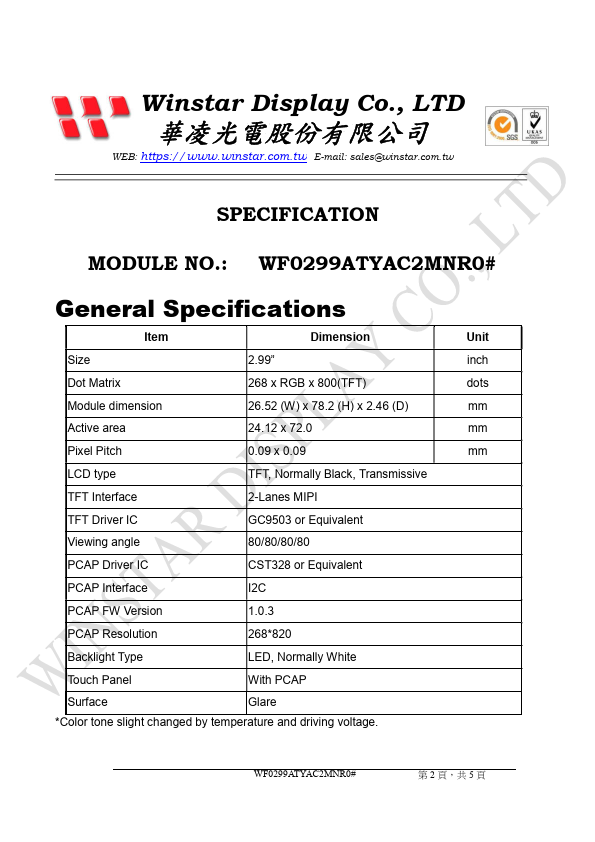

SPECIFICATION
MODULE NO.: WF0299ATYAC2MNR0#
General Specifications
Item
Dimension
Unit
Size
2.99” inch
Dot Matrix
268 x RGB x 800(TFT) dots
Module dimension
26.52 (W) x 78.2 (H) x 2.46 (D) mm
Active area
24.12 x 72.0 mm
Pixel Pitch
0.09 x 0.09 mm
LCD type
TFT, Normally Black, Transmissive
TFT Interface
2-Lanes MIPI
TFT Driver IC
GC9503 or Equivalent
Viewing angle
80/80/80/80
PCAP Driver IC
CST328 or Equivalent
PCAP...
