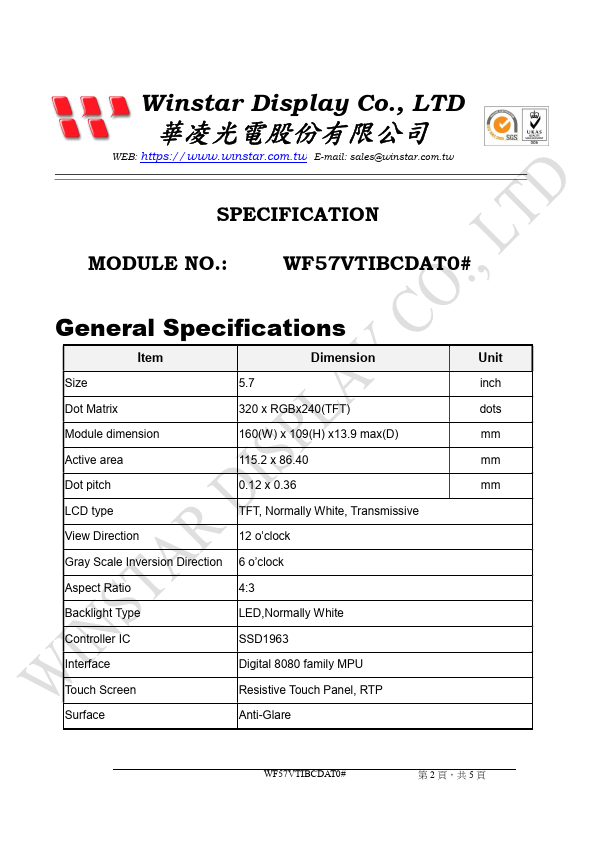

WF57VTIBCDAT0 Overview
Description

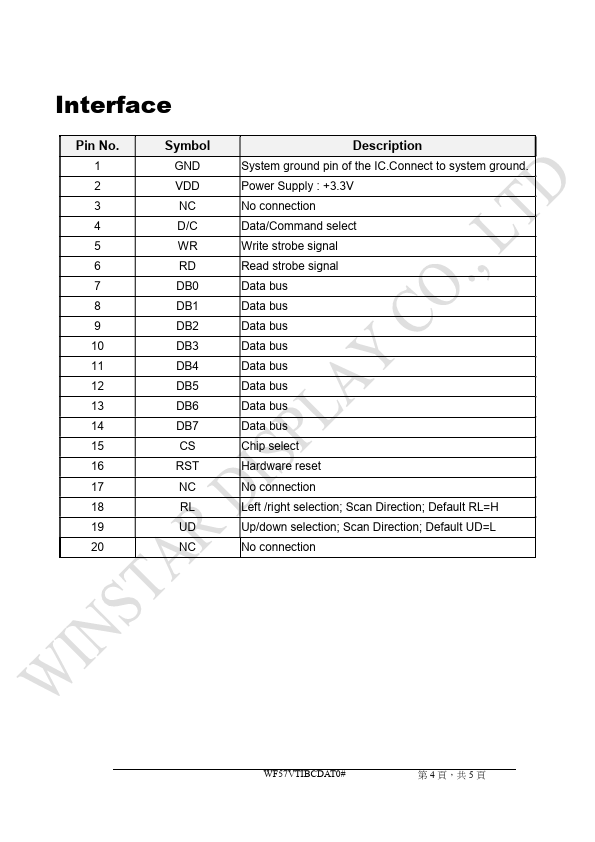

System ground pin of the to system ground. Power Supply : +3.3V No connection Data/Command select Write strobe signal Read strobe signal Data bus Data bus Data bus Data bus Data bus Data bus Data bus Data bus Chip select Hardware reset No connection Left /right selection; Scan Direction; Default RL=H Up/down selection; Scan Direction; Default UD=L No connection WF57VTIBCDAT0# 4 ， 5 Contour Drawing 6.58±0.5 (9.80) 10.18 (10.80) (11.33) TFT OD 109.00±0.5 TP OD 100.94 TP VA 89.40 FR VA 88.64 TP AA 87.40 TFT AA 86.40 11.00 10.16±0.5 (13.80) 13.76 (14.80) (15.30) 4- 3.50 4-R0.50 TFT OD 160.00±0.5 149.00±0.5 TP OD 125.48 138.60 TP VA 118.20 FR VA 118.28 TP AA 116.20 TFT AA 115.20 YU 10.40 13.
