Datasheet Summary
Winstar Display Co., LTD
華凌光電股份有限公司
WEB: https://.winstar..tw E-mail: sales@winstar..tw
SPECIFICATION
MODULE NO.:
WF57XTIACDNN0#
General Specifications
Item
Dimension
Unit
Size
5.7 inch
Dot Matrix
320 x RGB x 240(TFT) dots
Module dimension
126.00(W) x 101.55(H) x 6.05(D)(MAX) mm
Active area
115.2 x 86.40 mm
Dot pitch
0.12 x 0.36 mm
LCD type
TFT, Normally White, Transmissive
View Direction
12 o’clock
Gray Scale Inversion Direction 6 o’clock
Aspect Ratio
4:3
TFT Drive IC
HX8218+HX8615 or Equivalent

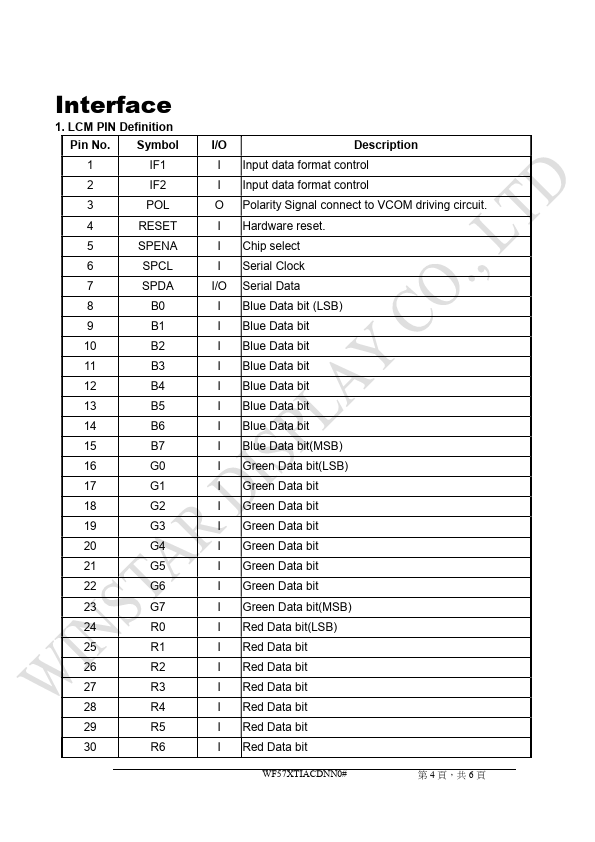

Interface...
