CMPA0760020F
CMPA0760020F is 25 W GaN MMIC HPA manufactured by Wolfspeed.
- 6.0 GHz, 25 W Ga N MMIC HPA
Description
Wolfspeed’s CMPA0760020F is a 25W package MMIC HPA utilizing Wolfspeed’s high performance, 0.15um Ga N on Si C production process. The CMPA0760020F operates from 0.7-6 GHz and supports military munications and electronic warfare along with ISM and EMC amplification. The CMPA0760020F achieves 25 W of saturated output power with 21 d B of large signal gain and typically 36% power-added efficiency under CW operation.
Packaged in a bolt-down, flange package, the CMPA0760020F provides superior performance in a thermally-enhanced package allowing customers to improve SWa P-C benchmarks in their nextgeneration systems.

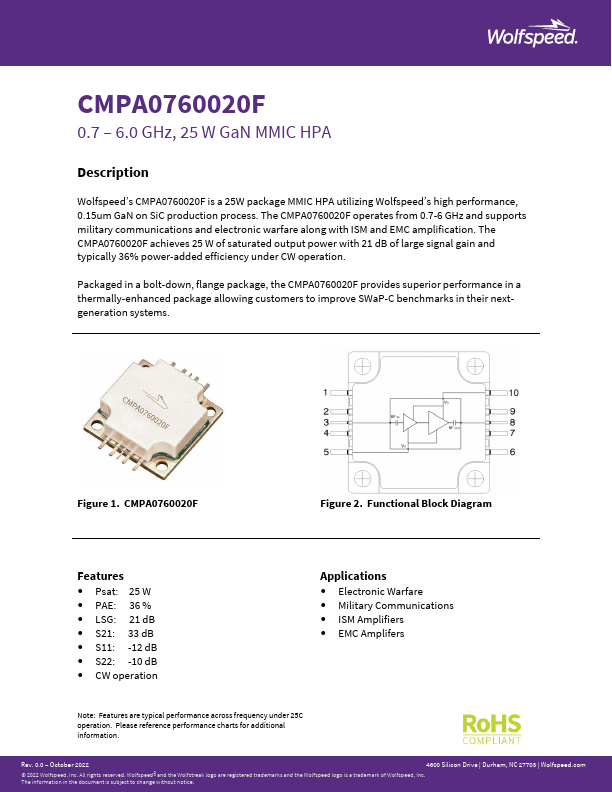

Figure 1. CMPA0760020F
Figure 2. Functional Block Diagram
Features
- Psat: 25 W
- PAE: 36 %
- LSG: 21 d B
- S21: 33 d B
- S11: -12 d B
- S22: -10 d B
- CW operation
Applications
- Electronic Warfare
- Military munications
- ISM Amplifiers
- EMC Amplifers
Note: Features are typical performance across frequency under 25C operation. Please reference performance charts for additional information.
Rev. 0.0
- October 2022
4600 Silicon Drive | Durham, NC 27703 | Wolfspeed.
© 2022 Wolfspeed, Inc. All rights reserved. Wolfspeed® and the Wolfstreak logo are registered trademarks and the Wolfspeed logo is a trademark of Wolfspeed, Inc. The information in the document is subject to change without notice.

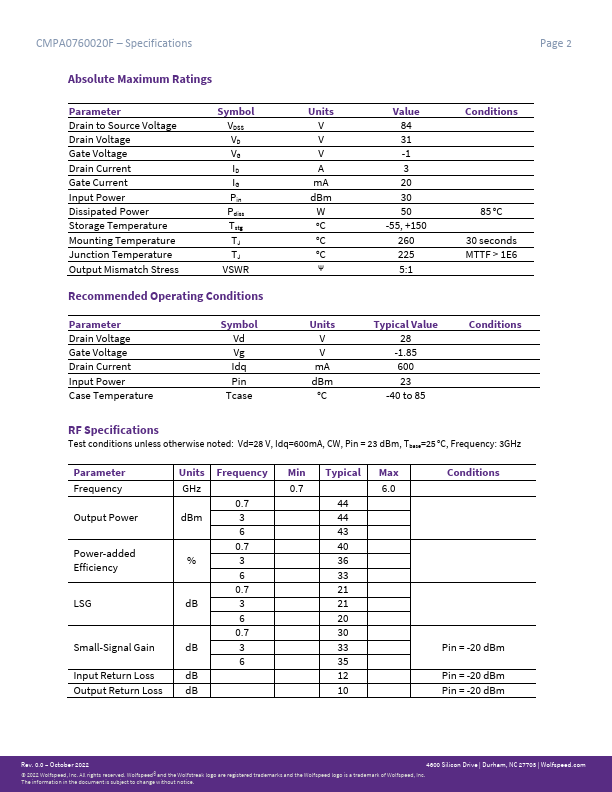

- Specifications
