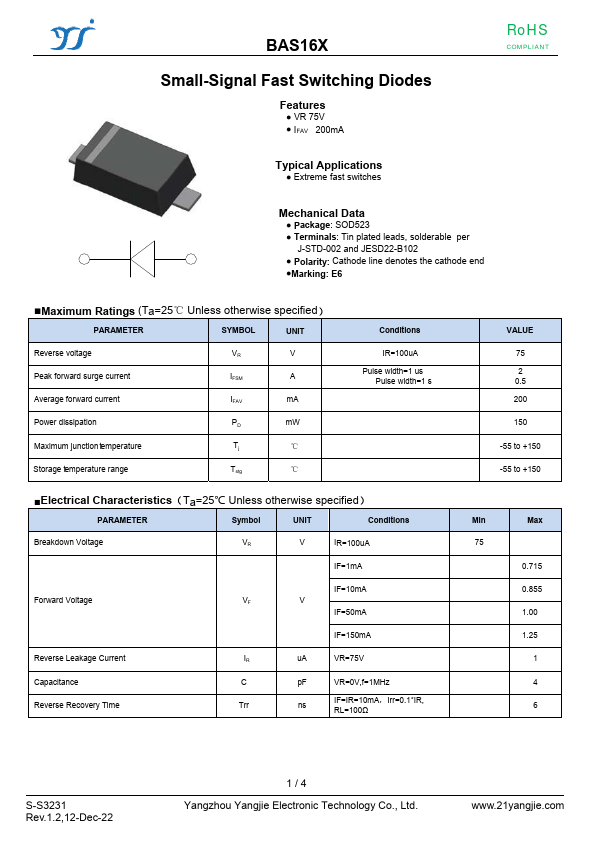

BAS16X
Features
- VR 75V
- IFAV 200m A
Typical Applications
- Extreme fast switches
Ro HS
PLIANT
Mechanical Data

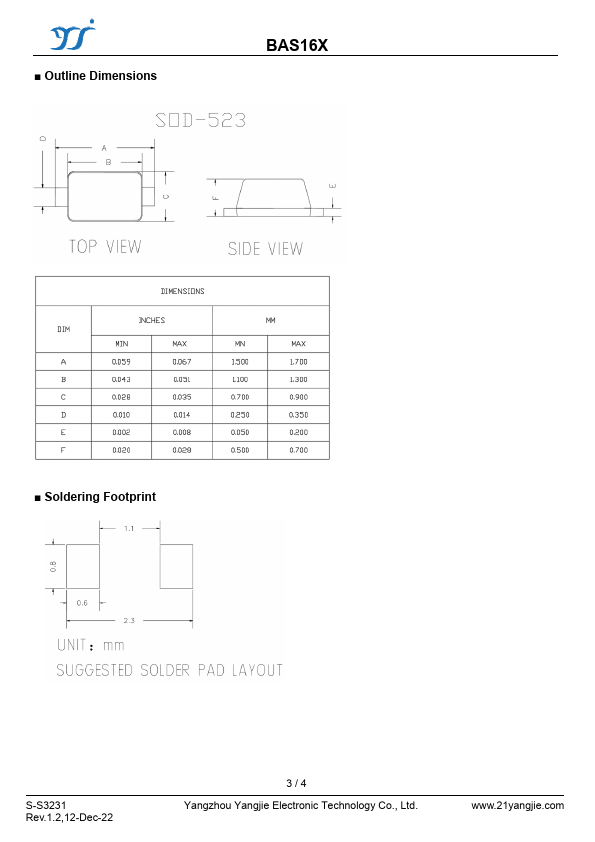

- Package: SOD523
- Terminals: Tin plated leads, solderable per
J-STD-002 and JESD22-B102
- Polarity: Cathode line denotes the cathode end
- Marking: E6
- Maximum Ratings (Ta=25℃ Unless otherwise specified）
PARAMETER
SYMBOL
UNIT
Reverse voltage
Peak forward surge current
IFSM
Average forward current
IFAV m A
Power dissipation
PD m W
Maximum junction temperature
Tj
℃
Storage temperature range
Tstg
℃
Conditions
IR=100u A Pulse width=1 us
Pulse width=1 s
- Electrical Characteristics（Ta=25℃ Unless otherwise specified）
PARAMETER
Symbol
UNIT...
