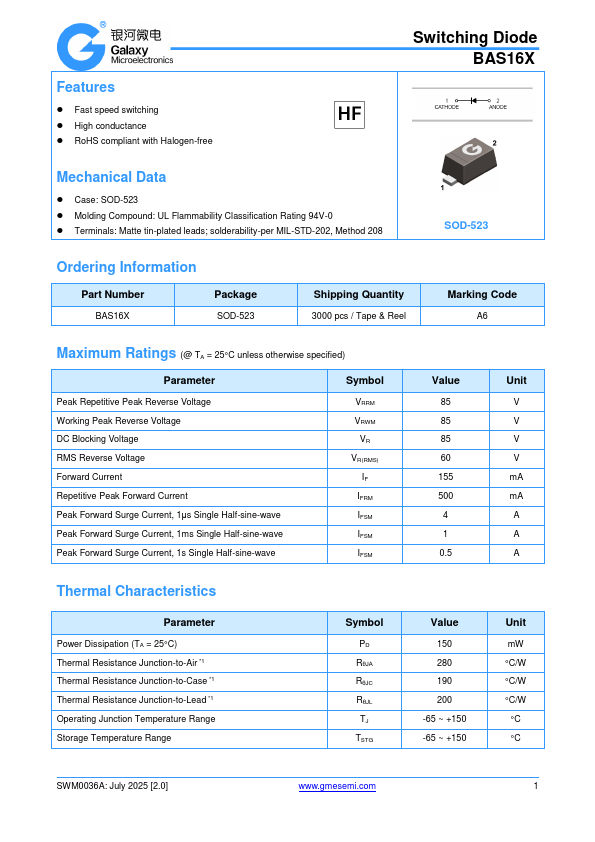

BAS16X
BAS16X is Switching Diode manufactured by Galaxy Microelectronics.
Features
- Fast speed switching
- High conductance
- RoHS pliant with Halogen-free
Switching Diode BAS16X
Mechanical Data
- Case: SOD-523
- Molding pound: UL Flammability Classification Rating 94V-0
- Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208
SOD-523
Ordering Information
Part Number
Package
SOD-523
Shipping Quantity
3000 pcs / Tape & Reel
Marking Code
A6
Maximum Ratings (@ TA = 25°C unless otherwise specified)
Parameter
Peak Repetitive Peak Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Forward Current Repetitive Peak Forward Current Peak Forward Surge Current, 1μs Single Half-sine-wave Peak...
