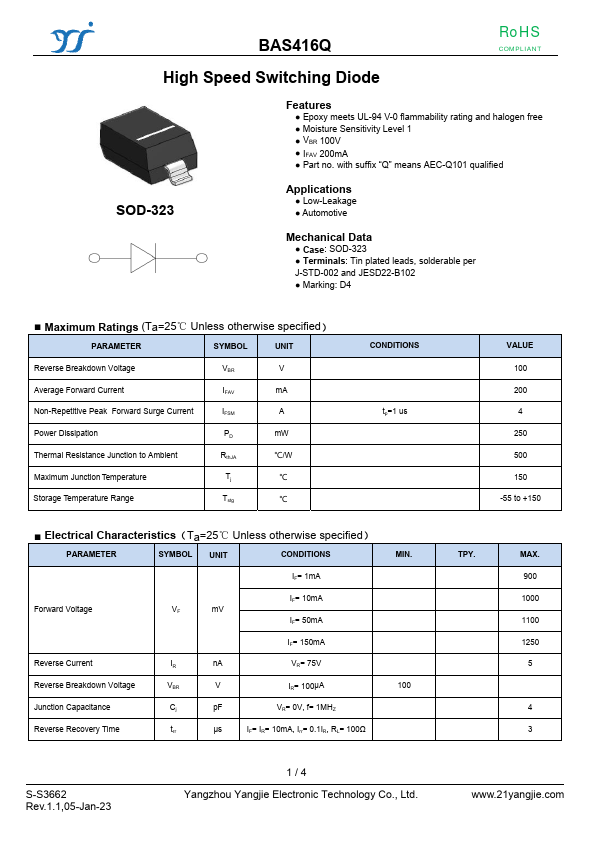

BAS416Q
BAS416Q is High Speed Switching Diode manufactured by Yangjie Electronic.
RoHS
PLIANT
High Speed Switching Diode
SOD-323
Features
- Epoxy meets UL-94 V-0 flammability rating and halogen free
- Moisture Sensitivity Level 1
- VBR 100V
- IFAV 200mA
- Part no. with suffix “Q” means AEC-Q101 qualified
Applications
- Low-Leakage
- Automotive
Mechanical Data

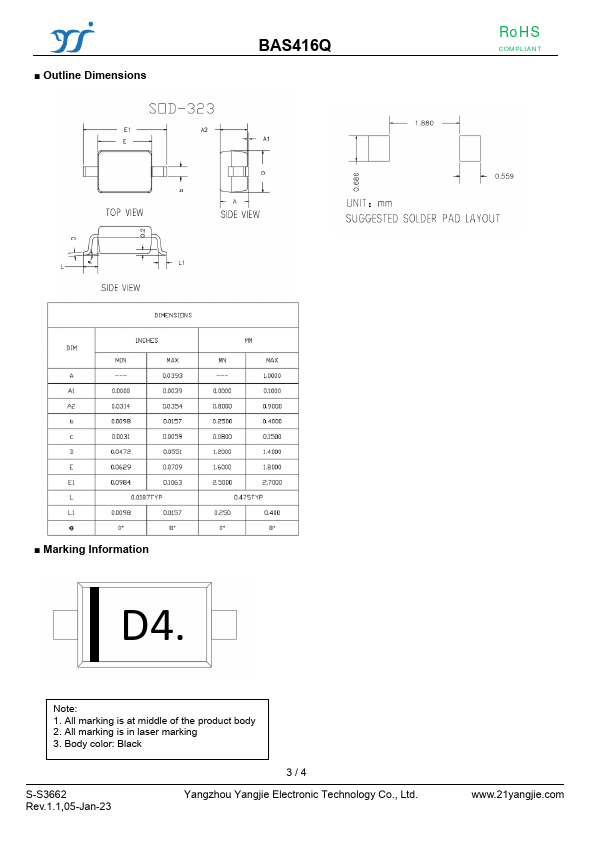

- Case: SOD-323
- Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102
- Marking: D4
- Maximum Ratings (Ta=25℃ Unless otherwise specified）
PARAMETER
SYMBOL
UNIT
Reverse Breakdown Voltage
Average Forward Current
IFAV mA
Non-Repetitive Peak Forward Surge Current Power Dissipation Thermal Resistance Junction to Ambient Maximum Junction Temperature Storage Temperature...
