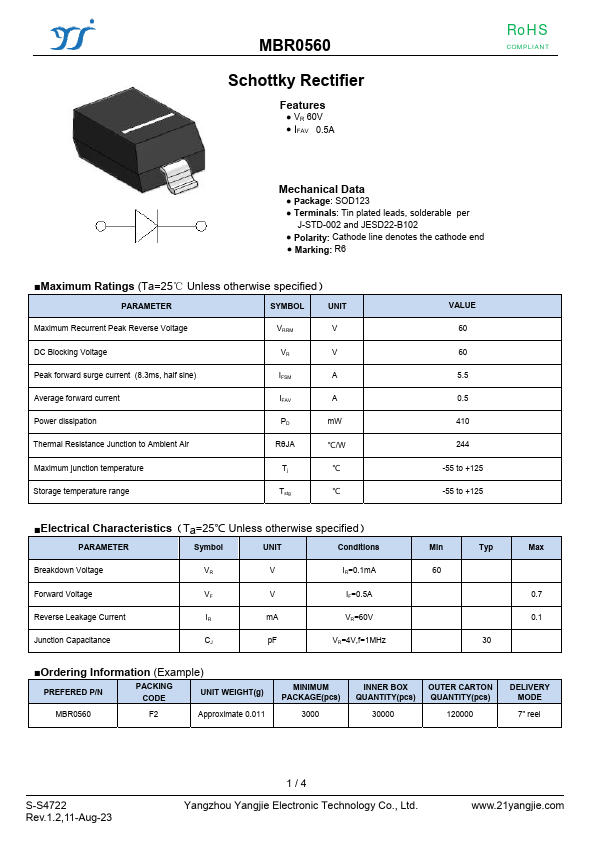

MBR0560
MBR0560 is Schottky Rectifier manufactured by Yangjie Electronic.
Features
- VR 60V
- IFAV 0.5A
Ro HS
PLIANT
Mechanical Data
- Package: SOD123
- Terminals: Tin plated leads, solderable per
J-STD-002 and JESD22-B102
- Polarity: Cathode line denotes the cathode end
- Marking: R6
- Maximum Ratings (Ta=25℃ Unless otherwise specified）
PARAMETER
SYMBOL
UNIT
Maximum Recurrent Peak Reverse Voltage
VRRM
DC Blocking Voltage
Peak forward surge current (8.3ms, half sine)
IFSM
Average forward current
IFAV
Power dissipation
PD m W
Thermal Resistance Junction to Ambient Air
RθJA
℃/W
Maximum junction temperature
Tj
℃
Storage temperature range
Tstg
℃
VALUE 60 60 5.5 0.5 410 244
-55 to +125 -55 to...
