Micro Commercial Components MBR0560
Schottky Rectifier
| Part No. | MBR0560 |
|---|---|
| Datasheet | MBR0560 Download |
| Manufacturer |  Micro Commercial Components |
| Description | Schottky Rectifier |
| Buy | Stock & Price |

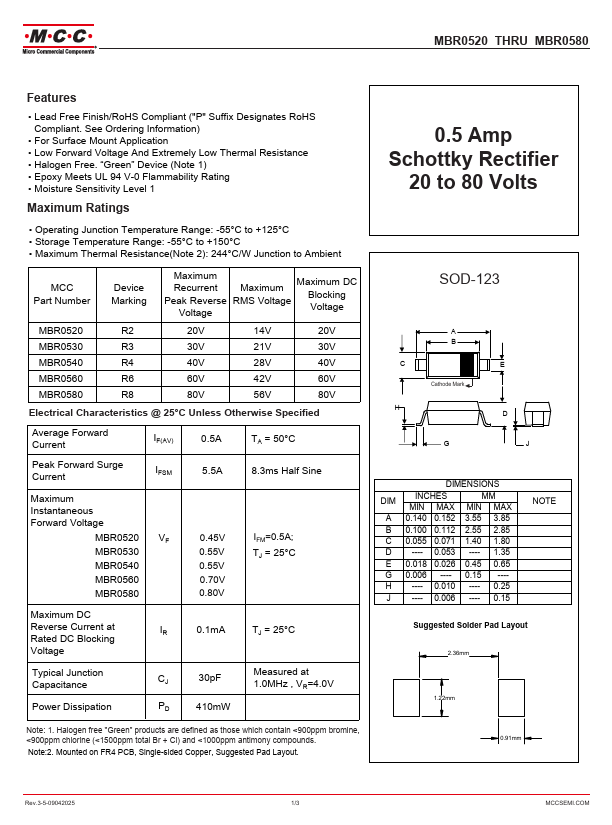

FEATURES

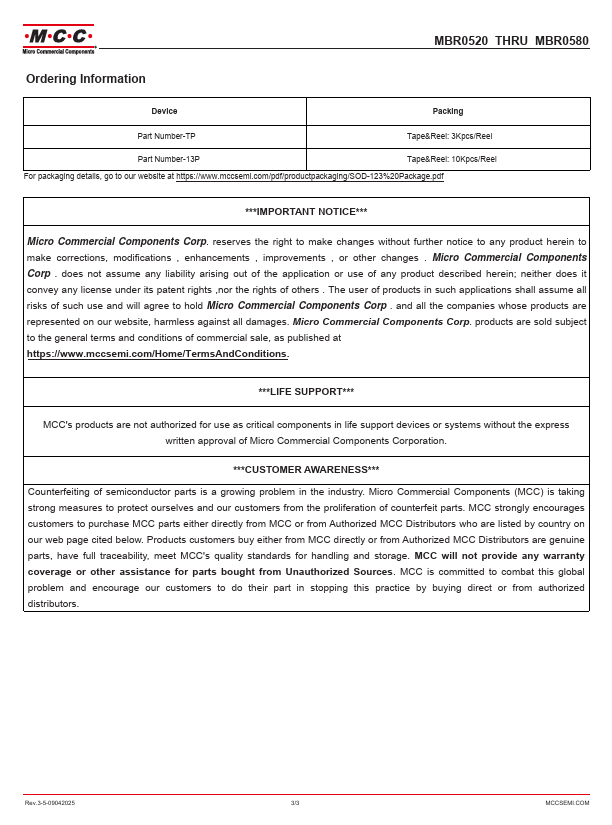

● Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information)● For Surface Mount Application
● Low Forward Voltage And Extremely Low Thermal Resistance
● Halogen Free. “Green” Device (Note 1)
● Epoxy Meets UL 94 V-0 Flammability Rating
● Moisture Sensitivity Level 1
MAXIMUM RATINGS
● Operating Junction Temperature Range: -55°C to +125°C● Storage Temperature Range: -55°C to +150°C
● Maximum Thermal Resistance(Note 2): 244°C/W Junction to Ambient MCC Part Number Device Marking Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage MBR0520 R2 MBR0530 R3 MBR0540 R4 MBR0560 R6 MBR0580 R8 20V 14V 20V 30V 21V 30V 40V 28V 40V 60V 42V 60V 80V 56V 80V

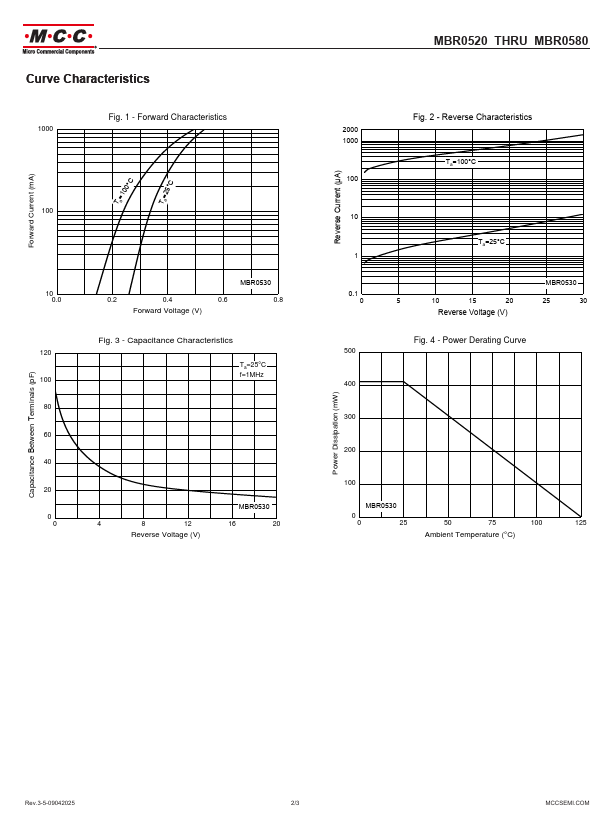

ELECTRICAL CHARACTERISTICS
@ 25°C Unless Otherwise Specified Average Forward Current IF(AV) 0.5A TA = 50°C Peak Forward Surge Current IFSM 5.5A 8.3ms Half Sine Maximum Instantaneous Forward Voltage MBR0520 VF MBR0530 MBR0540 MBR0560 MBR0580 Maximum DC Reverse Current at...
