Slkor MBR0560
SOD-123 Plastic-Encapsulate Diodes
| Part No. | MBR0560 |
|---|---|
| Datasheet | MBR0560 Download |
| Manufacturer |  Slkor |
| Description | SOD-123 Plastic-Encapsulate Diodes |
| Buy | Stock & Price |
FEATURES

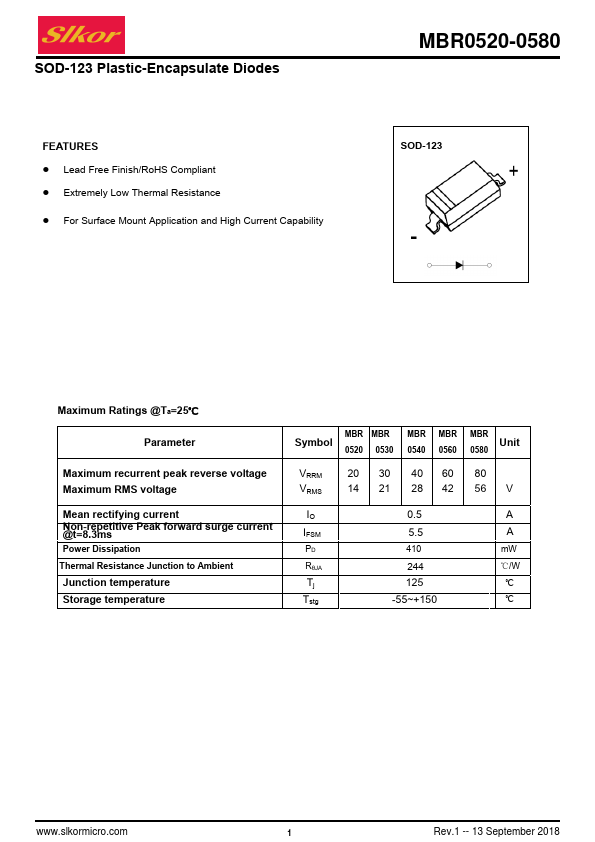

z Lead Free Finish/RoHS Compliant z Extremely Low Thermal Resistance z For Surface Mount Application and High Current Capability MBR0520-0580 SOD-123MAXIMUM RATINGS
@Ta=25℃ Parameter Maximum recurrent peak reverse voltage Maximum RMS voltage Mean rectifying current @Not=n8-r.e3pmestitive Peak forward surge current Power Dissipation Thermal Resistance Junction to Ambient Junction temperature Storage temperature MBR MBR MBR MBR MBR Symbol 0520 0530 0540 0560 Unit 0580 VRRM VRMS IO IFSM PD RθJA Tj Tstg 20 30 40 60 80 14 21 28 42 56 V 34 0.5 A 5.5 A 410 mW 244 125 -55~+150 ℃/W ℃ ℃ 1 Rev.1 -- 13 September 2018 MBR0520-0580ELECTRICAL CHARACTERISTICS
Ta=25 ℃ unless otherwise specified Parameter Forward voltage MBR0520 MBR0530 MBR0540 MBR0560 MBR0580 Reverse current MBR0520 MBR0530 MBR0540 MBR0560 MBR0580 Capacitance between terminals Symbol Min. Typ. Max. Unit 0.45 0.55 VF V 0.55 0.70 0.80 IR μA 80 CT 30 pF Conditions IF=500mA VR=20V VR=30V VR=40V VR=60V VR=80V VR=4V, f=1MHZ 2 Rev.
