MBR0560 - 0.5AMP SCHOTTKY RECTIFIER

General Description

The UTC MBR0560 is a Schottky Rectifier with high current capacity, ultra low thermal resistance and low forward voltage.

The UTC MBR0560 is suitable for surface mount applications.

Key Features

  • S.
  • Ultra Low Thermal Resistance.
  • High Current Capability.
  • Low Forward Voltage - DIODE + SOD-123 + SOD-123S.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MBR0560 Schottky Barrier Rectifier Crownpo
MBR0560 Schottky Barrier Diode JCET
MBR0560 Schottky Rectifier MCC
MBR05100 0.5 Amp Schottky Rectifier Micro Commercial Components
MBR05100AJ3 Schottky Barrier Rectifiers CYStech

Other Datasheets by Unisonic Technologies

Part Number Description
MBR0530 SCHOTTKY RECTIFIER DIODE
MBR0540 SCHOTTKY RECTIFIER DIODE
MBR10100 10A SCHOTTKY BARRIER RECTIFIER
MBR10100C SCHOTTKY BARRIER RECTIFIER
MBR10120 10A SCHOTTKY BARRIER RECTIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

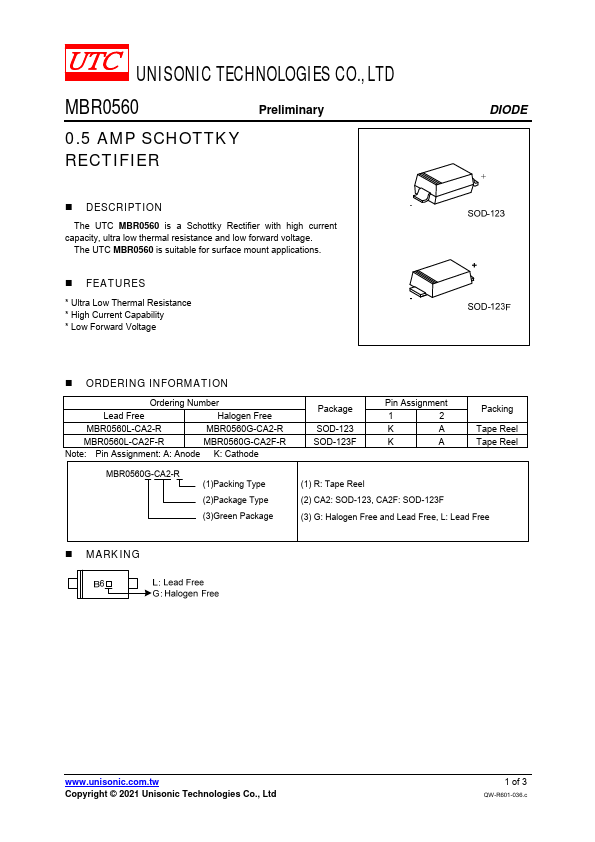

UNISONIC TECHNOLOGIES CO., LTD MBR0560 Preliminary 0.5 AMP SCHOTTKY RECTIFIER  DESCRIPTION The UTC MBR0560 is a Schottky Rectifier with high current capacity, ultra low thermal resistance and low forward voltage. The UTC MBR0560 is suitable for surface mount applications.  FEATURES * Ultra Low Thermal Resistance * High Current Capability * Low Forward Voltage - DIODE + SOD-123 + SOD-123S  ORDERING INFORMATION Ordering Number MBR0560G-CA2-R MBR0560G-CA2S-R Note: Pin Assignment: A: Anode K: Cathode MBR0560G-CA2-R (1)Packing Type (2)Package Type (3)Green Package Package SOD-123 SOD-123S Pin Assignment 12 KA KA (1) R: Tape Reel (2) CA2: SOD-123, CA2S: SOD-123S (3) G: Halogen Free and Lead Free Packing Tape Reel Tape Reel  MARKING www.unisonic.com.
